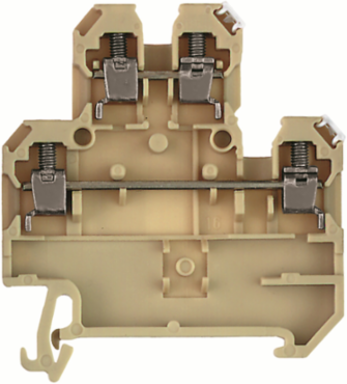

Weidmuller 1284060000 DK 4Q/35/TC TYP J
- MPN: 1284060000
- PPN: WDM-1284060000
CAD
$46.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SAK Series, Thermocouple terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Width
- 6 mm
- Height
- 54 mm
- Depth
- 59.5 mm
- Net weight
- 13.46 g
Width (inches)0.236 inch
Height (inches)2.126 inch
Depth (inches)2.343 inch
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000904
- eClass 9.0
- 27-14-11-42
- eClass 10.0
- 27-14-11-42
ETIM 7.0EC000904
eClass 9.127-14-11-42
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Thermocouple, One end without connector
- Number of potentials
- 2
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 2.5 mm²
Rating Data
- Rated cross-section
- 4 mm²
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
StandardsIEC 60584, IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x1.02 W
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping screw
- M 3
- Connection cross-section, stranded, min.
- 1.5 mm²
- Gauge to IEC 60947-1
- A3
- Stripping length
- 9 mm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.4 mm²
Connection cross-section, stranded, max.4 mm²
Connection directionon side
Number of connections4
Tightening torque, max.1 Nm
Torque level with DMS electric screwdriver2
Wire connection cross section, finely stranded, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.4 mm²
