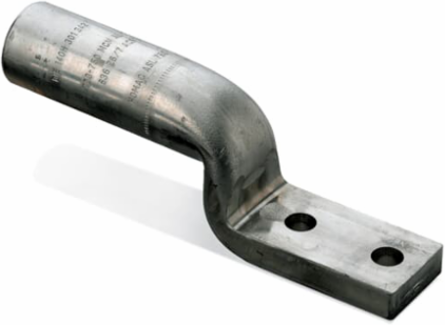

Blackburn ASL 800 NTN Aluminum Compression Lug 800 kcmil, 7-3/4 Inch Length, Dual Rated
- MPN: ASL 800 NTN
- UPC: 783786850419
- PPN: T-B-ASL 800 NTN
- UNSPSC: 39121409
CAD
$155.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated Aluminum Two-Hole NEMA Lugs - Stacking lug, 795 - 800 kcmil AL9CU - UL listed, ACSR 636 (30/19) and 715.5 (54/7), Installing dies 140H, 474, 342, 724, 1 1/2. Length 7-3/4 inch. Pad 1-3/4 inch wide x 3 inch long x 39/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 3-5/16 inch long x 1-21/32 inch outside diameter. Oxide Inhibitor. Light Blue Cap.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 8-5/16 x 1-3/4 inch wide
- Standards
- ANSI C119.4
- Wire Size
- 800 kcmil
Brand / LabelHomac
Effective Date20090910
Product TypeCompression Lug Two Hole Stacking
Special FunctionsMade from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Surface FinishingTin Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
