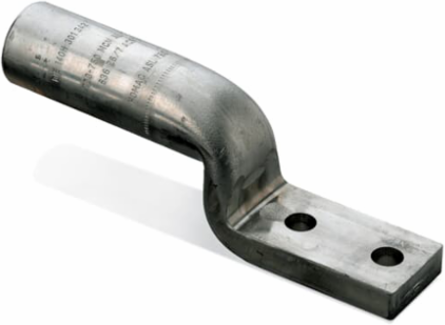

Blackburn ASL 300 NTN Aluminum Compression Terminal Stacking Lug 6-9/16 Inch x 1-11/32 Inch, 300 kcmil
Blackburn ASL 300 NTN Aluminum Compression Terminal Stacking Lug 6-9/16 Inch x 1-11/32 Inch, 300 kcmil
- MPN: ASL 300 NTN
- UPC: 783786696451
- PPN: T-B-ASL 300 NTN
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$88.57/ EA
Description
Tin Plated Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300 kcmil AL9CU - UL listed, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact. Dies TH, 87H, 251, 470, 1, 12A. Length 6 inch, Pad 3 inch long x 1-11/32 inch wide x 11/32 inch thick, (2) 9/16 inch Diameter holes on 1-3/4 inch Centers. Oxide Inhibitor, Blue Cap. Dual Rated for use with Aluminum and Copper Conductors.
Specifications
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- Length 6-9/16 inches X 1-11/32 inch wide
- Standards
- ANSI C119.4
- Wire Size
- 300 or 226.8 kcmil
Brand / LabelHomac
Effective Date20080619
Product TypeCompression Lug Two Hole Stacking
Special FunctionsMade from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Surface FinishingTin Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
