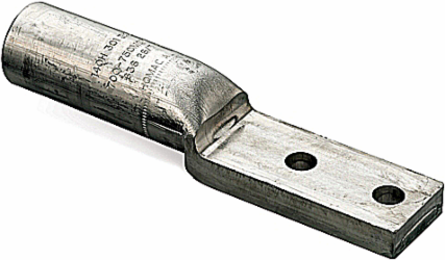

Blackburn AL 600 N Aluminum Two-Hole NEMA Lugs 600 Conductor Range, 7-3/4 Inch Length
- MPN: AL 600 N
- UPC: 078378669396
- PPN: T-B-AL 600 N
CAD
$92.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Two-Hole NEMA Lugs - Straight Lug, Concentric 600 and 550, ACSR 477 (26/7) and 556.5 (18/1), Installing Dies 1 5/16,115H,786,936,473
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 0.72 lbs. Each |
| Outer Dimensions (inches) | 13.7x8.6x8.6 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 600 |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Aluminum Two-Hole NEMA Lugs |
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Size | Length 7-3/4 inches |
| Material | Aluminum |
