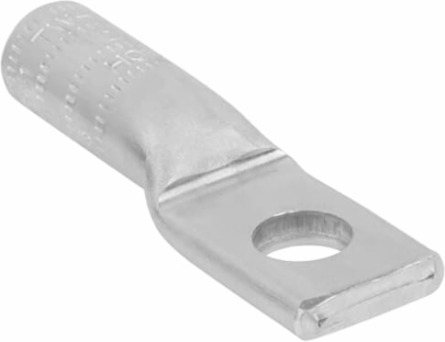

Blackburn AL 2-48 TN Compression Lug One Hole for #2 Stranded AL9CU, Length 2-5/8 Inch, Tin Plated
- MPN: AL 2-48 TN
- UPC: 783786693429
- PPN: T-B-AL 2-48 TN
- UNSPSC: 39121409
CAD
$34.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated Aluminum One-Hole NEMA Lugs, concentric 2 Stranded AL9CU, bolt size 1/2, installing dies TQ, 45, 348, 163, 1/2, 6A. Length 2-5/8 inch. Pad 3/4 inch wide x 1-1/8 inch long x 5/32 inch thick. Single Hole 17/32 inch Diameter. Barrel 59/64 inch. Outside Diameter 17/32 inch. Oxide Inhibitor. Pink Cap. UL Listed.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug One Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
- Wire Size
- #2 STR AWG
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
SizeLength 2.625 inch, Barrel .922 inch, Pad 1.125 inch x .750 inch wide x .166 inch thick
StandardsANSI C119.4
Temperature Range90 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
