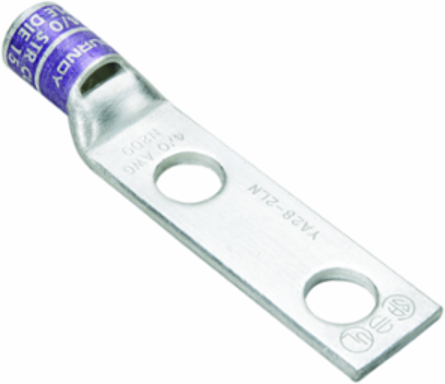

Burndy YA292LN Non-insulated; Tin Plated YA292LN

Non-insulated; Tin Plated YA292LN

Burndy YA292LN Non-insulated; Tin Plated YA292LN

MPN: YA292LN
UPC: 781810504222
PPN: HBL-YA292LN

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$12.31/ E

Loading add to cart quantity...

Description

Copper Compression Lug, 2 Hole w/ Inspection Window, 250 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated.

Specifications

Dimensions

Dimension - B Length fraction: 1-1/16 in

Dimension - Bolt Hole Size inch: 0.52 in

Dimension - D inch: 3.02 in

Dimension - L Length Overall mm: 117 mm

Dimension - N inch: 0.63 in

Dimension - Pad Width inch: 1.10 in

Dimension - Stud Size inch: 1/2

Physical Attribute - Tongue Angle: Straight

Dimension - B Length inch1.06 in

Dimension - Bolt Size fraction1/2

Dimension - Hole Size mm14 mm

Dimension - Length Overall inch4.62 in

Dimension - Outside Diameter inch0.75 in

Dimension - Strip Length inch1-1/8

Dimension - Z inch0.64 in

Certifications and Compliance

Certification - CSA Approved: Yes

Certification - UL Recognized: No

Standards - RoHS Compliance Status: CM

Certification - ETLNo

Certification - cULusNo

UL ListedYes

Conductor Related

Conductor - Copper DLO Size Range: N/A

Conductor - Copper Str Navy Size Range: 250 (61) Navy

Conductor - Copper Str Size Range: 250 kcmil

Conductor - Copper Str Navy Size250 (61) Navy

Conductor - Copper Str Size250 kcmil

Conductor - MaterialCopper

General

Application: For Code Conductor

Connector Type: Terminal

Feature - Barrel Type: Standard

Physical Attribute - Number of Holes: 2

Plated: Y

Sub Brand: HYLUG

Type: Standard Barrel, Tin Plated

Color CodeYellow

Die Index16

MaterialCopper

Physical Attribute - Tongue TypeStandard

Plating TypeTin - Electro Plated

Trade NameHYLUG™

UPC781810504222

Electrical Ratings

Rating - KVA: 35 kV

Voltage - Maximum: 35000

Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity: 1

Downloads
