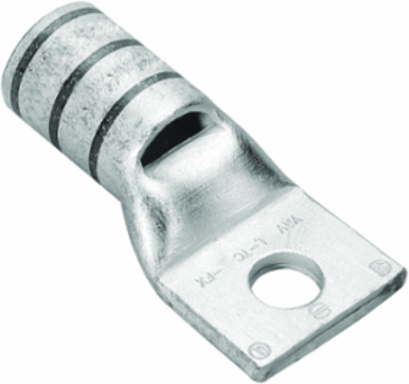

Hubbell YAV6CLTC516FX Copper Compression Lug, 5/16 Inch Stud, 6 AWG, 1 Hole, Tin Plated, Standard Length

Description

Features

• Specifically engineered for #6 AWG flexible copper conductors (including G, H, I, K, M, and DLO), this terminal features a flared, internally chamfered barrel for snag-free wire insertion. This design prevents stray strands from catching during installation, ensuring a fast, clean termination that maintains the full ampacity of high-performance power cables in motion-heavy industrial environments.
• The standard-length barrel is equipped with a precision-drilled inspection hole, allowing you to visually confirm that the conductor is fully seated against the internal stop. This simple but critical feature eliminates "blind" crimps, providing peace of mind for inspectors and ensuring every connection meets the highest standards for pull-out strength and electrical conductivity.
• Each high-conductivity copper lug is electro-tin plated to provide a robust barrier against oxidation and galvanic corrosion. This protective finish ensures a low-resistance electrical path over the life of the connection, making it an ideal choice for telecommunications, marine, and outdoor power distribution applications where moisture and salt air are constant threats.
• Branded with a permanent blue color code and stamped with Die Index 7, this lug takes the guesswork out of tool selection. When used with a matching Burndy hydraulic or mechanical tool, the die embosses the index number directly onto the barrel during the crimp, providing a permanent, visible "signature" that proves to site inspectors that the correct tool was used for a 35kV-rated connection.
