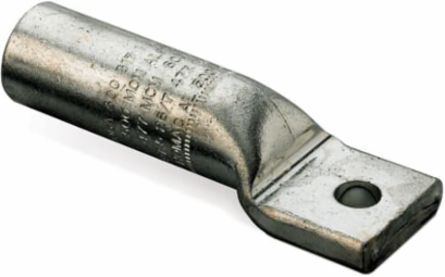

Blackburn AL 4-38 TN Aluminum Compression Lug 2-1/4 Inch Length, 3/8 Inch Bolt, Tin Plated
Blackburn AL 4-38 TN Aluminum Compression Lug 2-1/4 Inch Length, 3/8 Inch Bolt, Tin Plated
- MPN: AL 4-38 TN
- UPC: 783786693795
- PPN: T-B-AL 4-38 TN
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.17/ EA
Description
Tin-Plated Aluminum Compression Lug, One-Hole NEMA Pad, #4 Stranded AL9CU, UL Listed. Dies TB, 37, 375, 162. Length 2-1/4 inch, Barrel 15/16 inch long, Pad 1 inch long x 5/8 inch wide x 3/16 inch thick. Oxide Inhibitor. Green Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug One Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
- Wire Size
- #4 STR AWG
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
SizeLength 2.250 inch, Barrel .875 inch, Pad 1.000 inch x .625 inch wide x .187 inch thick
StandardsANSI C119.4
Temperature Range90 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
