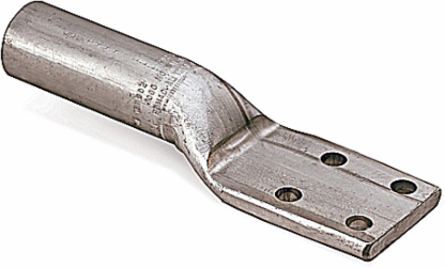

Blackburn AL 1250-4 NTN Tin-Plated Aluminum Compression Lug for 1250 KCMIL, 10 Inch x 3 Inch
- MPN: AL 1250-4 NTN
- UPC: 783786693252
- PPN: T-B-AL 1250-4 NTN
CAD
$180.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tin-Plated Aluminum Compression Lug for Aluminum and Copper Terminations, Four-Hole NEMA Pad, 1250 KCMIL, 1/2 inch Bolt
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- 1250 kcmil
- Finish
- Tin Plated
- Temperature Rating
- 90 Degrees Celsius
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
Size10 inch long x 3 inch wide, Barrel 4-5/8 inch, Pad 3-9/16 inch
MaterialAluminum
InsulationNo
Bolt Size5/8 inch
Packaging
- Outer Quantity
- 5
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
