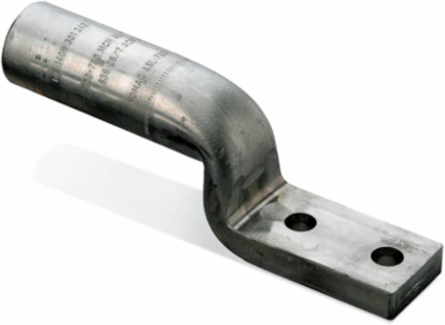

Blackburn ASL 500 NTNK Compression Lug Two Hole Stacking 7.375 Inch Long, Tin Plated, 477-500 kcmil
Blackburn ASL 500 NTNK Compression Lug Two Hole Stacking 7.375 Inch Long, Tin Plated, 477-500 kcmil
- MPN: ASL 500 NTNK
- UPC: 783786696611
- PPN: T-B-ASL 500 NTNK
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$168.90/ EA
Description
Tin Plated Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 500 NTN) and a Stacking Two-Hole NEMA Lug (ASL 500 NTN). 500 kcmil AL9CU - UL listed, 477 kcmil, Compact 600 kcmil, , ACSR 397.5 (26/7) and 477 (18/1), installing dies 106A, 300, 317, 1 5/16, 15A.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole Stacking
- Special Functions
- Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.
- Surface Finishing
- Tin Plated
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
Size7.375 inch long
StandardsANSI C119.4
Wire Size477 to 500 kcmil500 to 600 kcmil
