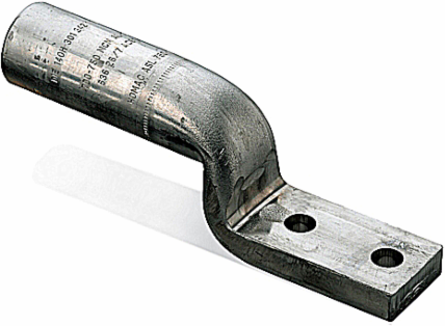

Blackburn ASL 750 NK Aluminum Stacking Lug Kit - 8-1/4 Inch Long, Dual Rated for Aluminum & Copper
- MPN: ASL 750 NK
- UPC: 783786696659
- PPN: T-B-ASL 750 NK
CAD
$283.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Compression Stacking Lug Kit Containing Both a Standard Two-Hole NEMA Lug and a Stacking Two-Hole NEMA Lug for Aluminum and Copper Terminations - Concentric 750 and 700, ACSR 636 (26/7), Installing Dies 140H,301,342,1 1/2
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.
- Standard
- ANSI C119.4
- Conductor Range
- Concentric 750 and 700, ACSR 636 (26/7)
- Finish
- Bare
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeStacking Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
Size8-1/4 inch long
MaterialAluminum
InsulationNo
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity4
Weight Uom2.02 lbs. Each
