Documentation & Downloads

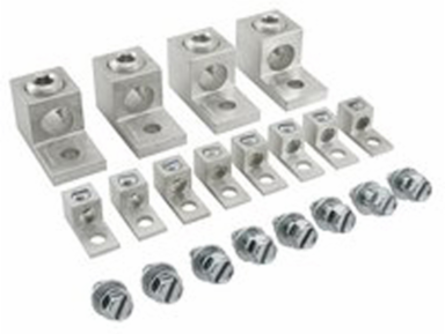

ILSCO TLK-1 Aluminum Transformer Lug Kit, Dual Rated, Includes (8) TA-2, (4) TA-250, (8) Bolts 1/4-20 x 3/4, (8) Free Spin Flange Nuts 1/4-20
- MPN: TLK-1
- UPC: 783669879001
- PPN: ILC-TLK-1
CAD
$105.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Transformer Lug Kit, Dual Rated, Includes (8) TA-2, (4) TA-250, (8) Bolts 1/4-20 x 3/4, (8) Free Spin Flange Nuts 1/4-20
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.375 in | 60.325 mm
- Weight
- 0.803441063936636 lbs
Length5 in
Width5 in | 127 mm
Voltage
- Transformer kVA Size
- 15 to 45 (3-PHASE), 15 to 37-1/2 (1-PHASE)
Voltage Rating35 kV
Dimensions
- Height BX (IN)
- 2.25
- Weight BX (LB)
- 1.6413
- Width (mm)
- 127
Height (mm)60.325
Width BX (IN)5
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Contains DE-OX®
- No
Includes(8) TA-2, (4) TA-250, (8) Bolts 1/4-20 X 3/4, (8) Free Spin Flange Nuts 1/4-20
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
Connector FinishTin
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366987900
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
