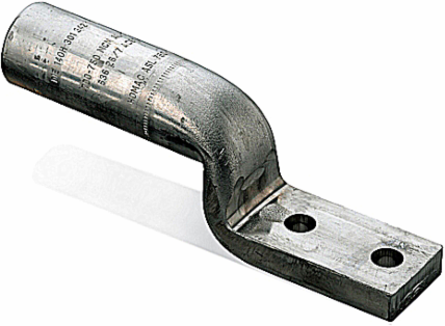

Blackburn ASL 350 NTNK Stacking Lug, 6.375 Inch Long, Tin-Plated Aluminum, Dual Rated for Aluminum & Copper

Stacking Lug, 6.375 Inch Long, Tin-Plated Aluminum, Dual Rated for Aluminum & Copper
Stacking Lug, 6.375 Inch Long, Tin-Plated Aluminum, Dual Rated for Aluminum & Copper
  • MPN: ASL 350 NTNK
  • PPN: T-B-ASL 350 NTNK

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$199.84/ EA

Description

Tin-Plated Aluminum Compression Stacking Lug Kit for Aluminum and Copper Terminations - Concentric 350, 336.4 Compact 350, ACSR 266.8 (26/7) and 336.4 (18/1), Installing Dies 96,299,655,1 1/8-1, 705,13A

Features

  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made of Aluminum for High Strength and High Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.
Standard
ANSI C119.4
Conductor Range
Concentric 350, 336.4 Compact 350, ACSR 266.8 (26/7) and 336.4 (18/1)
Finish
Tin-Plated
Bolt Size
1/2 inch
IGCC4668 Wire or cable compression connector
TypeStacking Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
Size6.375 inch long
MaterialAluminum
InsulationNo

Packaging

Inner Quantity
1
Outer Dimensions (inches)
1x1x1
Outer Quantity8
Weight Uom0.86 lbs. Each
