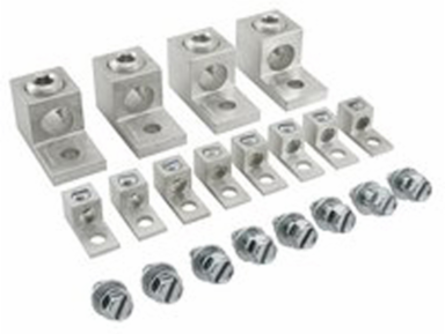

ILSCO TLK-4 Aluminum Transformer Lug Kit, Dual Rated, Includes (29) TA-600, (18) 3/8-16 x 2 Bolts, (18) 3/8-16 Free Spin Flange Nuts
- MPN: TLK-4
- UPC: 783669879063
- PPN: ILC-TLK-4
CAD
$1196.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Transformer Lug Kit, Dual Rated, Includes (29) TA-600, (18) 3/8-16 x 2 Bolts, (18) 3/8-16 Free Spin Flange Nuts
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.875 in | 98.425 mm
- Weight
- 5.94577557530637 lbs
Length11 in | 279.4 mm
Width6.375 in | 161.925 mm
Voltage
- Transformer kVA Size
- 500 (3-PHASE)
Voltage Rating35 kV
Dimensions
- Height BX (IN)
- 3.75
- Length (mm)
- 279.4
- Width BX (IN)
- 6.375
Height (mm)98.425
Weight BX (LB)12.4049
Width (mm)161.925
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Contains DE-OX®
- No
Includes(29) TA-600, (18) 3/8-16 X (2) Bolts, (18) 3/8-16 Free Spin Flange Nuts
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
Connector FinishTin
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366987906
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
