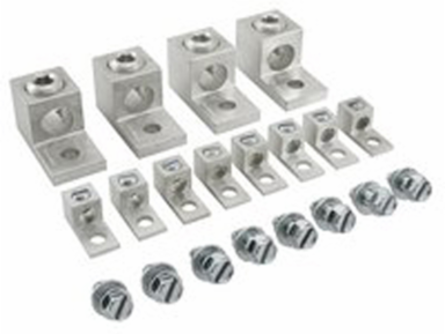

ILSCO TLK-3 Aluminum Transformer Lug Kit, Dual Rated, Includes (3) TA-250, (22) TA-600, (3) 1/4-20 x 3/4 Bolts, (3) 1/4-20 Nuts, (16) 3/8-16 x 2 Bolts, (16) 3/8-16 Nuts, (16) 3/8 Flat Washer
- MPN: TLK-3
- UPC: 783669879049
- PPN: ILC-TLK-3
CAD
$925.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Transformer Lug Kit, Dual Rated, Includes (3) TA-250, (22) TA-600, (3) 1/4-20 x 3/4 Bolts, (3) 1/4-20 Nuts, (16) 3/8-16 x 2 Bolts, (16) 3/8-16 Nuts, (16) 3/8 Flat Washer
Documentation & Downloads
Specifications
Key Specifications
| Height | 4.375 in | 111.125 mm |
|---|---|
| Weight | 4.89238883798882 lbs |
| Length | 7.75 in | 196.85 mm |
|---|---|
| Width | 6.75 in | 171.45 mm |
Voltage
| Transformer kVA Size | 100 to 167 (1-PHASE), 150 to 300 (3-PHASE) |
|---|
| Voltage Rating | 35 kV |
|---|
Dimensions
| Height BX (IN) | 4.25 |
|---|---|
| Length (mm) | 196.85 |
| Width BX (IN) | 7.75 |
| Height (mm) | 111.125 |
|---|---|
| Weight BX (LB) | 10.1149 |
| Width (mm) | 171.45 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Contains DE-OX® | No |
|---|
| Includes | (3) TA-250, (22) TA-600, (3) 1/4-20 X 3/4 Bolts, (3) 1/4-20 nuts, (16) 3/8-16-(2) Bolts, (16) 3/8-16 nuts, (16) 3/8 flat washer |
|---|
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Material | Aluminum |
| Connector Finish | Tin |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366987904 |
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
