ILSCO

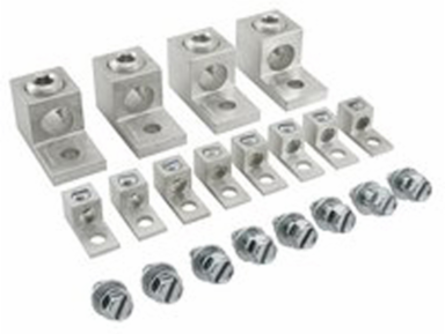

ILSCO TLK-2 Aluminum Transformer Lug Kit, Dual Rated, Includes (12) TA-250, (8) 1/4-20 x 3/4 Bolts, (8) 1/4-20 x 1-3/4 Bolts, (16) 1/4-20 Free Spin Flange Nuts

  • MPN: TLK-2
  • UPC: 783669879025
  • PPN: ILC-TLK-2

CAD

$221.34

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Aluminum Transformer Lug Kit, Dual Rated, Includes (12) TA-250, (8) 1/4-20 x 3/4 Bolts, (8) 1/4-20 x 1-3/4 Bolts, (16) 1/4-20 Free Spin Flange Nuts

Documentation & Downloads

Specifications

Key Specifications

Height2.375 in | 60.325 mm
Weight1.05159073860459 lbs
Length5 in
Width5 in | 127 mm

Voltage

Transformer kVA Size50 to 75 (1-PHASE), 75 to 112-1/2 (3-PHASE)
Voltage Rating35 kV

Dimensions

Height BX (IN)2.25
Weight BX (LB)2.5815
Width (mm)127
Height (mm)60.325
Width BX (IN)5

Testing Standards

CSA File NumberLR-29601
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207

Additional Class Attributes

Contains DE-OX®No
Includes(12) TA-250, (8) 1/4-20 X 3/4 Bolts, (8) 1/4-20 X 1-3/4 Bolts, (16) 1/4-20 Free Spin Flange Nuts

Material and Finish

Conductor MaterialCopper, Aluminum
MaterialAluminum
Connector FinishTin

General

Bag Quantity1
Direct BurialNo
NEMA CodeS-588-3
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366987902

Color

ColorSilver

Environment and Temperature

Temperature Rating90°C
Aluminum Transformer Lug Kit, Dual Rated, Includes (12) TA-250, (8) 1/4-20 x 3/4 Bolts, (8) 1/4-20 x 1-3/4 Bolts, (16) 1/4-20 Free Spin Flange Nuts
