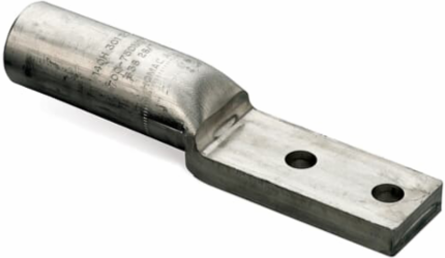

Blackburn AL 500 N 608 Aluminum Compression Lug 8-1/4 Inch x 1-3/4 Inch, 477-500 kcmil, Dual Rated
- MPN: AL 500 N 608
- UPC: 075114161725
- PPN: T-B-AL 500 N 608
- UNSPSC: 39121409
CAD
$118.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Two-Hole NEMA Lugs - straight lug, 477-500 kcmil and 500-600 Compact AL-CU and ACSR 397.5 (26/7) and 477 (18/1), installing dies 608, 786, 722, 936. Length 8-1/4 inch. Pad 1-3/4 inch wide x 3-9/16 inch long x 29/64 inch thick. Barrel 3-5/16 inch long x 1-1/2 inch Outside Diameter. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Piink Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Wire Size
- 477 to 500 kcmil500 to 600 kcmil
Brand / LabelHomac
Effective Date20140225
Product NameALUMINUM LUG
Size8-1/4 inch long x 1-3/4 inch wide
StandardsANSI C119.4
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
