Hubbell ATS-00721 ATS-00721 (former catalog number ATS-DRPMNT-UNIV1-OOOP)
- MPN: ATS-00721
- UPC: 662620434933
- PPN: HBL-ATS-00721
CAD
$305.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

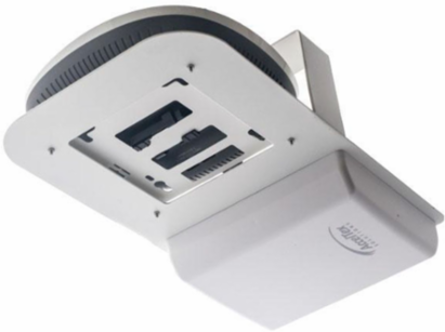

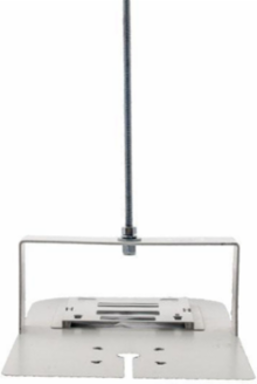

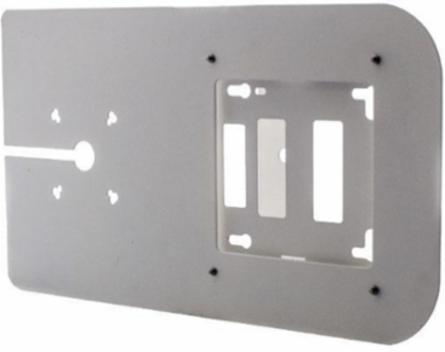

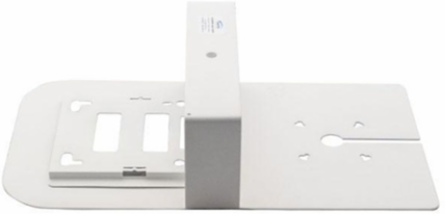

ATS-00721 (former catalog number ATS-DRPMNT-UNIV1-OOOP). The AccelTex Solutions All-Thread Drop Mount provides a unique solution to mount a Cisco, Aruba or other T-Bar mounted AP and an AccelTex Omni or Patch antenna in one location using All-Thread. The AP snaps into place by fitting the AP mounting feet into pre-defined keyholes in the mount or using the T-Bar mount supplied with the AP. This mount can be used to lower the height of the antenna and AP in a building with high ceilings or can even be placed above a suspended ceiling. All-Thread and fasteners not included.
Features
- All-Thread drop mount for T-Bar mounted APs and AccelTex antennas
- Enables flexible positioning in high ceilings or above suspended ceilings
- AP snaps securely into place with pre-defined keyholes or T-Bar mount
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 16.1 in x 9.1 in x 4.2 in |
| Length | 16.1 in |
| Application | Indoor Wi-Fi |
| Installation Type | 3/8" All Thread or Beam Clamp |
| Freight Class Code | 01312001 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | 10.250x24.000x18.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620434933 |
| Pallet - GTIN - Package | 70662620434932 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
| Color | White |
|---|---|
| Height | 4.2 in |
| Width | 9.1 in |
| Compatibility | Arista C-230E;Arista C-460E;Aruba/HP AP-504;Aruba/HP AP-518;Aruba/HP AP-534;Aruba/HP AP-634;Aruba/HP AP-734;Cisco Catalyst 9120AXE;Cisco Catalyst 9130AXE;Mist AP32e;Mist AP43e;Mist AP45E |
| Class Code | A62 |
| Harmonization Code | 8302500000 |
| Sub Class Code | A62A622 |
| Material | Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 23.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| Pallet Height | 46.000 in |
| Pallet Weight | 396.000 lb. |
