Hubbell ATS-00851 ATS-00851 (former catalog number ATS-ID90RD-245-23-1NP-IC-W)

MPN: ATS-00851
UPC: 662620435091
PPN: HBL-ATS-00851

$54.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

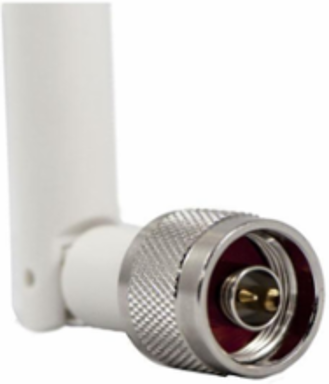

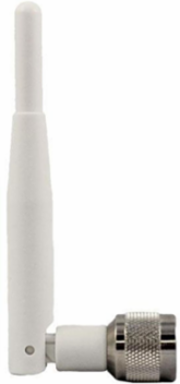

ATS-00851 (former catalog number ATS-ID90RD-245-23-1NP-IC-W). The AccelTex Solutions dual band indoor rubber duck antenna is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor space. The antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna also articulates 90 degrees and attaches directly to any enterprise-class AP. This highly versatile antenna is suitable for a broad range of indoor applications where a higher gain external antenna is not needed.

Features

Dual band indoor rubber duck antenna optimized for 2.4 and 5 GHz Wi-Fi
Articulates 90˚and attaches directly to enterprise-class APs.

Specifications

Key Specifications

Country of Origin	Taiwan
Length	5.4 in
Voltage Ratio	Max 2.0
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	N-Style Plug
Impedance	50 Ohms
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	2/3 dBi
Product Type	Omni Antenna
Width	0.5 in
Compatibility	Arista O-235E;Aruba/HP AP-574;Cisco 1572eac;Cisco 1572ec;Cisco IW9167E;Cisco Catalyst 9124AXE;Cisco MR66;Mist AP61E;Mist AP63E
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Installation Type	Direct Connect to Radio
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620435091
