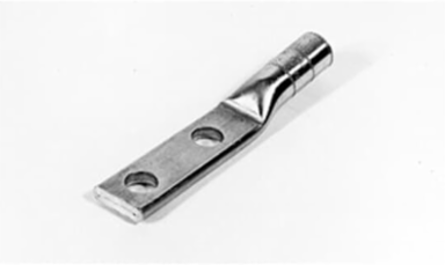

Blackburn AL 1000 N 90 Aluminum Compression Lug 1000 KCMIL 90 Degree, 9-11/16 Inch Length
- MPN: AL 1000 N 90
- UPC: 783786693122
- PPN: T-B-AL 1000 N 90
- UNSPSC: 39121409
CAD
$177.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Two-Hole NEMA Lug with 90 Degree Bend, 954 to 1000 kcmil AL-CU, ACSR 795 (26/7,30/19) and 954 (45/7), installing dies 161, 292, 302, 319, 1 3/4. Before Bending Length 9-11/16 inch, Pad Width 2-39/64 inch x 3-41/64 inch long x 39/64 inch Thick. Holes on 1-3/4 inch Center to Center Spacing. Bore 4-5/8 inch Deep. Oxide Inhibitor, Brown Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole - 90 Degree
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Wire Size
- 1000 kcmil
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
SizeUnbent length 9.687 inch long, Pad 3.625 inch x 2.600 inch wide, Nominal Bend length 6.75 inches
StandardsANSI C119.4
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
