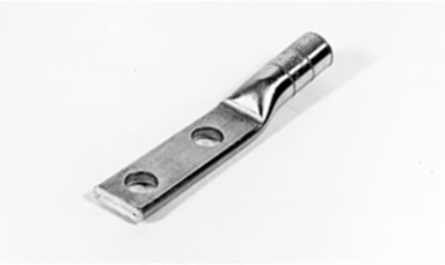

Blackburn AL 100 MMNTN Aluminum Compression Lug 100 mm² with 6 Inch Length and Tin Plated Finish
- MPN: AL 100 MMNTN
- UPC: 783786072460
- PPN: T-B-AL 100 MMNTN
- UNSPSC: 39121409
CAD
$38.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated, Aluminum Compression Lug, 100 mm2 ACSR, Bolt Holes 9/16 inch Diameter on 1-3/4 inch Centers, Two Hole NEMA Pad. Length 6 inches, Bore 19/32 inch Diameter x 1-15/16 inch Deep. Pad 3-11/32 inch x 1-15/64 inch wide x 19/64 inch thick. Oxide Inhibitor. Red Cap. Tin Plated Finish. Dies 324 (U29ART) Dual Rated for Aluminum and Copper Conductors
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
- Wire Size
- 100 mm²
Brand / LabelHomac
Effective Date20110510
Product NameELECTRICAL CONNECTOR,>1000V
SizeLength 6 inches, Barrel 1.938 inch, Pad 3.344 inch x 1.237 inch wide x .297 inch thick
StandardsANSI C119.4
Temperature Range90 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
