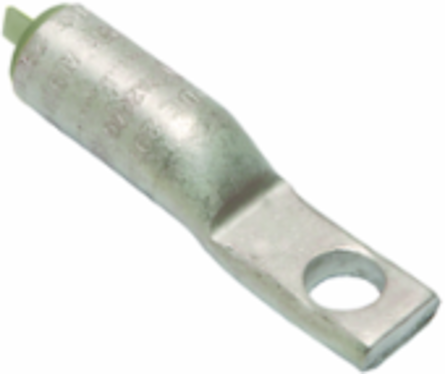

Burndy YA25A1 Aluminum HYLUGTM Terminal, 1/0 AWG, 600V-35kV, 5/16 Inch Stud, 0.38 Inch Hole Size
- MPN: YA25A1
- UPC: 781810752852
- PPN: BUR-534251
CAD
$36.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V - 35 kV |
|---|---|
| Length Overall | 2.31 in |
| Stud Size | 5/16 in |
| Temperature Rating | 1946F (906C) |
| Plating Type | Tin - Electro Plated |
| CSA Approved | No |
| Industry Standards | UL468A-468B |
| Barrel Style | Chamfered |
| Tongue Angle | Straight |
| Color Code | Tan |
| Conductor Size | 1/0 AWG |
|---|---|
| Outside Diameter | 0.60 in |
| Hole Size | 0.38 in (10 mm) |
| Material | Aluminum |
| UL Listed | Yes |
| RoHS Compliance | CM |
| Connector Type | Terminal |
| Tongue Type | Standard |
| Number of Holes | 1 |
| Trade Name | HYLUG14 |
