Burndy YA30A6 HYLUGTM Aluminum Tube Terminal, 1 Hole, 300 kcmil, 35 kV, 3/8 Inch Stud, Blue
- MPN: YA30A6
- UPC: 781810755518
- PPN: BUR-534541
CAD
$81.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

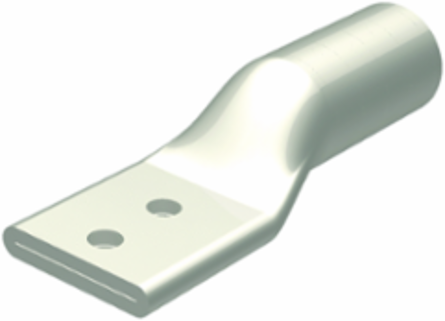

Aluminium Tube Hylug, 1 Hole w/o Inspection Window, Al-300 kcmil,Cu-300 kcmil, 600V-35kV, 3/8" stud, Closed, Compression, 0.44 in BCD, Blue.
Features
- Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Wire Strip Length: 1-3/4 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U30ART Die, (2), Y46 Tool, U30ART Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 470
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-9/16 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - D inch
- 1.37 in
- Dimension - Hole Size mm
- 11 mm
- Dimension - Length Overall inch
- 3.90 in
- Dimension - Outside Diameter inch
- 1.01 in
- Dimension - Strip Length inch
- 1-3/4
- Dimension - Thread Size
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.53 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size inch0.44 in
Dimension - L Length Overall mm99 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch1.38 in
Dimension - Stud Size inch3/8
Dimension - Z inch0.74 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 300 kcmil
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 300 kcmil
Conductor - AL Str Size Range300 kcmil
Conductor - Copper Str Size300 kcmil
General
- Application
- For Aluminum And Copper Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Item Type
- 3B
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- UPC
- 781810755518
Color CodeBlue
Die Index470
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Temperature Rating194
TypeYA-A, Dual Rated
UPC 12 Digit7818107555188
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
