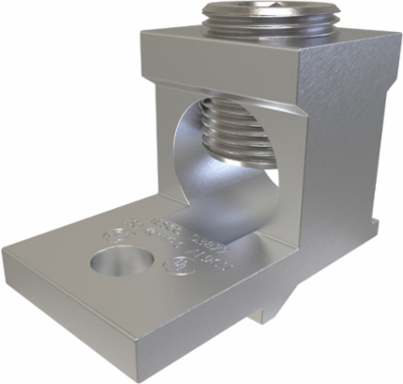

ILSCO ATTA-350-14 Aluminum Anti-Turn Mechanical Lug, Conductor Range 350-6, 1 Conductor, 1/4in Bolt Size, Tin Plated, UL, CSA
- MPN: ATTA-350-14
- UPC: 783669992182
- PPN: ILC-ATTA-350-14
CAD
$15.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Anti-Turn Mechanical Lug, Conductor Range 350-6, 1 Conductor, 1/4in Bolt Size, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.125 in | 28.575 mm |
|---|---|
| Weight | 0.064 lbs |
| Length | 1.76 in | 44.704 mm |
|---|---|
| Width | 1 in | 25.4 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.33 |
|---|---|
| Drive Size Main | 3/8 |
| Height (mm) | 28.575 |
| Mounting Hole Diameter (IN) | 0.281 |
| Tang Length (IN) | 0.978 |
| Tang Thickness (IN) | 0.2 |
| Tang Width (IN) | 1 |
| Width (mm) | 25.4 |
| Dimension G (mm) | 8.382 |
|---|---|
| Drive Type Main | Internal Hex |
| Length (mm) | 44.704 |
| Mounting Hole Diameter (mm) | 7.1374 |
| Tang Length (mm) | 24.8412 |
| Tang Thickness (mm) | 5.08 |
| Tang Width (mm) | 25.4 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Anti-Turn Key | Yes |
|---|---|
| Contains DE-OX® | No |
| Number of Conductors | 1 |
| Number of Poles | 1 |
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 1 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Tin |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 350 kcmil - 6 Str |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 350 kcmil - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 15 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366999218 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|---|
| Wire Binding Screw Size | 11/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 275 |
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
