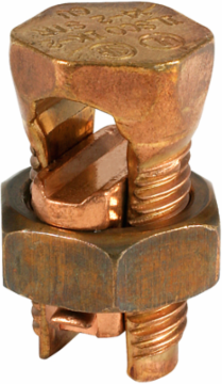

ILSCO IK-8 Copper Split Bolt, Conductor Range for Equal Main & Tap 8-16, UL, CSA
- MPN: IK-8
- UPC: 783669470024
- PPN: ILC-IK-8N
CAD
$7.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 8-16, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.5 in
- Weight
- 0.031 lbs
Length0.84 in
Width0.58 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 3/8, 1/2
- Height BX (IN)
- 2.25
- Width BX (IN)
- 5
Drive Type MainExternal Hex
Weight BX (LB)4.21
Wire Diameter Range Primary (IN)0.057 - 0.145
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 8 Str - 16 Str
- Conductor Range for Minimum Tap with Maximum Run
- 16 Str
Conductor Range for Equal Run & Tap Sol10 Sol - 16 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366947002
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque80
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
