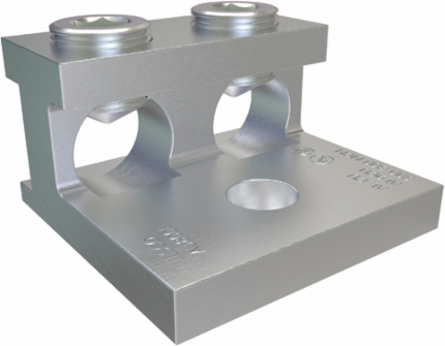

ILSCO AU-800-I Aluminum Mechanical Lug, Conductor Range 800-300, 2 Ports, 1 Hole, 5/8in Bolt Size, Tin Plated, CSA
- MPN: AU-800-I
- UPC: 783669715361
- PPN: ILC-AU-800-I
- UNSPSC: 39121408
CAD
$71.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Canada Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 5/8 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 800 kcmil - 300 kcmil, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Silver, 1 poles,
Specifications
Key Specifications
| Type | Item |
|---|---|
| ItemUPCCode | 78366971536 |
| ItemCatalogIndicator | C |
| ItemConductorRangeCUStrandedPrimaryrunmainline | 800 kcmil - 300 kcmil |
| ItemConductorRangeALStrandedPrimaryrunmainline | 800 kcmil - 300 kcmil |
| ItemDriveSizeMain | 1/2 |
| ItemMountingBoltStudSize | 5/8 |
| ItemWireBindingScrewSize | 15/16 |
| ItemLength | 3.04 |
| ItemWidth | 3.035 |
| ItemHeight | 1.75 |
| ItemWeight | 0.628973034677057 |
| ItemDimensionGmm | 22.352 |
| ItemMountingHoleDiametermm | 16.764 |
| ItemTangLengthmm | 50.546 |
| ItemTangThicknessmm | 11.8872 |
| ItemTangWidthmm | 77.089 |
| ItemConductorMaterial | Copper,Aluminum |
| ItemWireBindingHardwareMaterial | Aluminum |
| ItemColor | Silver |
| ItemVoltageRating | 600 V |
| ItemCSAStandard | C22.2 No. 65,C22.2 No. 188 |
| ItemProp65 | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| ItemConductorType | Stranded |
| ItemMountingHoleType | Thru |
| ItemNumberofMountingHoles | 1 |
| ItemNumberofPortsWireways | 2 |
| ItemBagQuantity | 1 |
| ItemStatus | Ready |
|---|---|
| ItemUNSPSCCode | 39121408 |
| ItemDualRated | True |
| ItemConductorSizeCUPrimaryrunmainline | 800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil |
| ItemConductorSizeALPrimaryrunmainline | 800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil |
| ItemDriveTypeMain | Internal Hex |
| ItemNumberofWireBindingScrewsperPort | 1 |
| ItemWireBindingTorque | 500 |
| ItemLengthmm | 77.216 |
| ItemWidthmm | 77.089 |
| ItemHeightmm | 44.45 |
| ItemDimensionGetc | 0.88 |
| ItemMountingHoleDiameter | 0.66 |
| ItemTangLength | 1.99 |
| ItemTangThickness | 0.468 |
| ItemTangWidth | 3.035 |
| ItemMaterial | Aluminum |
| ItemConnectorFinish | Tin |
| ItemWireBindingHardwareFinish | Tin |
| ItemTemperatureRating | 90°C |
| ItemCSAFileNumber | LR-5465 |
| ItemULControlNumber | 18H3 |
| ItemConnection | Mechanical |
| ItemContainsDEOX | False |
| ItemNumberofConductors | 2 |
| ItemNumberofPoles | 1 |
| ItemNumberofPortsMain | 2 |
