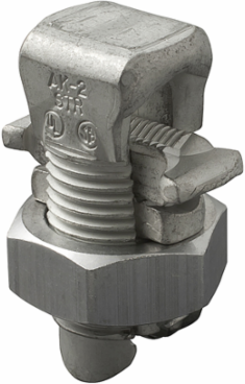

Ilsco AK-2-B Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA, Bag of 1
Ilsco AK-2-B Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA, Bag of 1
- MPN: AK-2-B
- PPN: ILC-AK-2-B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.03/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 11/16, 15/16
- Height BX (IN)
- 2.75
- Width BX (IN)
- 4
Drive Type MainExternal Hex
Weight BX (LB)0.4575
Testing Standards
- CSA File Number
- 72632
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number670B
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
Connector FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2 Str - 6 Str COMPACT
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str - 6 Str COMPACT
Conductor Range AL Stranded (Secondary, tap, load)2 Str - 8 Str
Conductor Range CU Stranded (Secondary, tap, load)2 Str - 8 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 5
Dual RatedYes
UPC Code78366901024
Specifications
- Weight
- 0.0643 lbs
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque275
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
