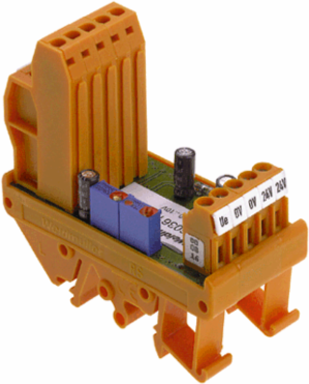

Weidmuller 1160761001 RS D8-U 0...10V
- MPN: 1160761001
- PPN: WDM-1160761001
CAD
$347.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

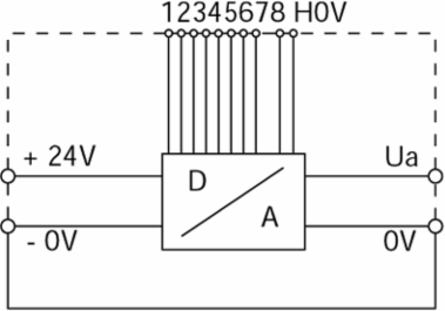

Description
DA converter, Input : 8-bit pulse, Output : 0-10 V
Documentation & Downloads
Specifications
General Data
| Accuracy | ± 1 LSB |
|---|---|
| Galvanic isolation | Without isolation |
| Rail | TS 35, TS 32 |
| Current consumption | 25 mA (plus output current) |
|---|---|
| Input/Output | 8 bit / analogue |
| Voltage supply | 24 V DC |
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 70 mm |
|---|---|
| Width | 35 mm |
| Height | 72 mm |
| Net weight | 72 g |
| Length (inches) | 2.756 inch |
|---|---|
| Width (inches) | 1.378 inch |
| Height (inches) | 2.835 inch |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Clamping range, rated connection | 4 mm² |
|---|---|
| Clamping range, max. | 4 mm² |
Input
| Number of inputs | 8-bit (1-bit signed) |
|---|---|
| Rated input level | 5…24 V DC = High, 0 V DC = Low, max. 30 V = High |
| Input resistance, voltage | 50 kΩ per input |
|---|
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-90 |
| UNSPSC | 30-21-18-01 |
Output
| Number of outputs | 1 |
|---|---|
| Output current | ≤ 10 mA max. current |
| Offset voltage | ≤ 20 mV |
| Output voltage, note | 0...10 V |
|---|---|
| load impedance voltage | ≥ 1 kΩ |
| Conversion time | ≤ 30 µs |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61000-6 |
|---|
| Galvanic isolation | Without isolation |
|---|
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | 0 °C...50 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
