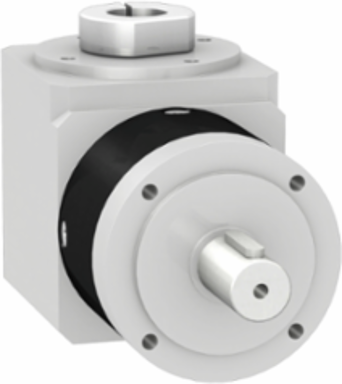

Schneider Electric GBY120003K Angular Gearbox Straight Teeth, 120 mm, Reduction 3:1, 80 N.m Torque
- MPN: GBY120003K
- PPN: SCH-GBY120003K
CAD
$2117.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Angular Gearbox is engineered to meet the demanding requirements of automation and control applications. With a robust reduction ratio of 3:1 and an impressive torque capacity of 80 N.m, this gearbox is designed to provide reliable motion control for various servo motor systems. Its straight teeth design ensures smooth operation and longevity, making it a vital component for enhancing efficiency in motion systems. Whether integrating into existing setups or developing new automation solutions, this gearbox delivers the performance needed to optimize productivity in industrial environments.
Documentation & Downloads
Specifications
Additional
- Continuous Output Torque
- 80 N.m at 100 rpm, 30 6C
- Reduction Ratio
- 3:1
- Maximum Axial Force
- 2100 N at 100 rpm, 30 6C
- Torsional Rigidity
- 12 N.m/arcmin
- Gearbox Type
- Angular planetary
- Gearbox External Diameter
- 120 mm (4.72 in)
- Shaft Moment Of Inertia
- 5.75 kg.cm8
- Housing Material
- Black anodized aluminium
- Shaft Material
- C 45
- Ambient Temperature for Operation
- -25 to 90 6C (-13 to 194 6F)
- Mounting Position
- Any position
- Country of Origin
- Germany
Maximum Output Torque128 N.m at 100 rpm, 30 6C
Maximum Radial Force1500 N at 100 rpm, 30 6C
Maximum Torsional Backlash11 arc.min
Efficiency94 %
Gear Box Teeth TypeStraight teeth
Input Diameter24.0 mm (0.94 in)
Net Weight12 kg (26.46 lb)
Housing ColourBlack
IP Degree of ProtectionShaft output IP54
Service Life30000 h at 100 rpm, 30 6C
LubricationLubricated for life
ComplianceRoHS Compliant, Mercury Free, PVC Free
