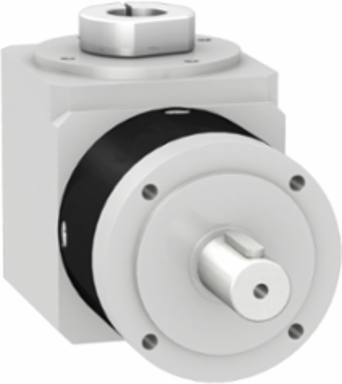

Schneider Electric GBY060008K Angular Planetary Gearbox, 60mm, 8:1 Reduction, 18 N.m Torque
- MPN: GBY060008K
- PPN: SCH-GBY060008K
CAD
$992.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Angular Planetary Gearbox from Schneider Electric is an exceptional solution for precision motion control in various automation applications. Featuring an 8:1 reduction ratio, this 60mm gearbox is designed to deliver robust performance, providing an impressive torque of 18 N.m, which ensures efficient power transmission even in demanding environments. Its compact design and reliable engineering make it ideal for integration into systems where space and efficiency are critical, setting a standard for performance and durability in the realm of motion control.
Documentation & Downloads
Specifications
Additional
- Continuous Output Torque
- 18 N.m at 100 rpm, 30 0C
- Maximum Radial Force
- 340 N at 100 rpm, mid-distance
- Maximum Torsional Backlash
- 16 arc.min
- Reduction Ratio
- 8:1
- Service Life
- 30000 h at 100 rpm, 30 0C
- Gear Box Teeth
- Straight teeth
- Internal Diameter
- 14.0 mm (0.55 in)
- Housing Colour
- Black
- Net Weight
- 1.7 kg (3.75 lb)
- Mounting Position
- Any position
- Moment of Inertia
- 0.176 kg.cm8
- Ingress Protection
- Shaft output IP54
- China RoHS
- Product out of China RoHS scope
- EU RoHS Directive
- Product out of EU RoHS scope
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Warranty
- 18 months
- Product Or Component Type
- Angular planetary gearbox
Maximum Output Torque29 N.m at 100 rpm, 30 0C
Maximum Axial Force450 N at 100 rpm
Torsional Rigidity2.3 N.m/arcmin
Efficiency94%
Gearbox TypeAngular planetary
External Diameter60 mm (2.36 in)
Housing MaterialBlack anodized aluminium
Shaft MaterialC 45
Noise Level70 dB at 1 m, no-load
Operating Temperature Range-25 to 90 0C (-13 to 194 0F)
LubricationLubricated for life
Environmental DisclosureENVPEP111245EN
RoHS ExemptionYes
Reach RegulationContains SVHC above threshold
PVC FreeYes
Country of OriginGermany
Device Short NameGBY
