Angular Gearbox with Straight Teeth, 120mm, 8:1 Reduction Ratio, 120 N.m Torque
Schneider Electric

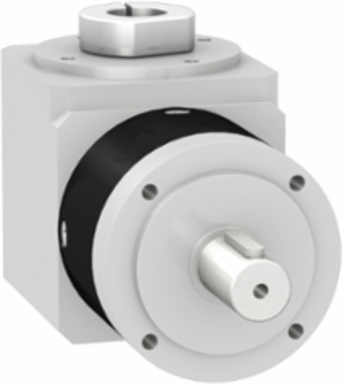

Schneider Electric GBY120008K Angular Gearbox with Straight Teeth, 120mm, 8:1 Reduction Ratio, 120 N.m Torque

  • MPN: GBY120008K
  • PPN: SCH-GBY120008K

CAD

$2117.86

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric angular gearbox is designed to provide reliable motion control in automation applications, featuring straight teeth for efficient power transfer. With a robust 120mm structure, it boasts an impressive 8:1 reduction ratio, ensuring high torque output of up to 120 N.m for heavy-duty performance. This gearbox is an excellent choice for enhancing the precision and reliability of servo motors, making it invaluable for various engineering and industrial projects where efficient motion control is paramount.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Germany, France

Physical Attributes

Housing Color
black

Complementary Attributes

Minimum Operational Altitude
-25.0 m, -25.0 m
Maximum Operational Altitude
90.0 m
Maximum Permitted Torque
128.0 N.m
Maximum Revolution Speed
6500.0 rpm
Maximum Axial Force Fa2100 N 100 rpm, during 30000 hour at 30°C
Maximum Output Torque192 N.m 100 rpm 30 °C
Maximum Radial Force Fr1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
Maximum Torsional Backlash11 arc.min

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Minimum Operational Altitude
-25.0 m, -25.0 m
Reduction Ratio Per Size
3:1, 4:1, 5:1, 8:1, 12:1, 20:1, 40:1
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1 kg CO2 eq., 1.0722844828
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
48 kg CO2 eq., 48.3793103448
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Traceability
No
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1901
China Rohs In Scope
No
Without Single Use Plastic
No
Tier Id
2
Function Option Id
ADVANCED
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Continuous Stall Torque
80.0 N.m
Efficiency
95.0 %
Gearbox External Diameter
120 mm
Internal Diameter
24.0 mm
Maximum Permitted Torque
128.0 N.m
Mounting Position
any position
Noise Level
75 dB 1 m, no-load
Peak Stall Torque
128.0 N.m
Product Or Component Type
angular planetary gearbox
Service Life In Hours
30000 h 100 rpm 30 °C
Shaft Moment Of Inertia
2.846 kg.cm²
Static Torque
1.35 N.m
Torsional Rigidity
12 N.m/arcmin
Housing Color
black
Database Version
2016-11
Pcr Version
PCR-ed3-EN-2015 04 02
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Manufacturing [A1-a3]
Energy model used: Germany
Energy Model - Use [B6]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total
194.5 mm
Package Weight(Lbs)
9.895 kg
Warranty (In Months)
18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
13153.5
Net Use Of Fresh Water (M3) Operational Energy Use [B6]
4201.7
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
2.8855
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
23144
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
20201
Water Pollution (M3) Operational Energy Use [B6]
47817.5
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Reduction Ratio8, 8:1
Carbon Footprint Of The Distribution Phase [A4]1.5482758621, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.030374569, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 159 kg CO2 eq., 1158.8
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityNo
Use Carbon Footprint1158.8
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Compatibility CodeGBY
Device Short NameGBY
Gear Box Typestraight teeth
Housing Materialblack anodized aluminium
Maximum Operational Altitude90.0 m
Maximum Revolution Speed6500.0 rpm
No Load Running Torque0.3 N.m
Nominal Speed2050 rpm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Shaft MaterialC 45
Software VersionEIME v5.8.1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 210 kg CO2 eq.
Pep CodeENVPEP111245EN
Pep Verification Date2020-07-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2365.2
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]49875.5
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]1158.8
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]4320.55
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]20201
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2943
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2943
Customs Code8483403040

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibility
BMI 100 mm, 2, BMH 100 mm, 2, BMH 100 mm, 3, BSH 100 mm, 2, SH3, MH3, ILM
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
1209.8302452586
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2020-07-01
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-25-90 °C, -25-90 °C
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP111245EN
Ip Degree Of Protectionshaft output IP54
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111245EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type
angular planetary gearbox

ETIM

ETIM 8
EC002584
ETIM 9EC002584

Output Attributes

Continuous Output Torque
120 N.m 100 rpm 30 °C
Maximum Output Torque192 N.m 100 rpm 30 °C

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Efficiency
95.0 %

Batteries & Runtime Attributes

Additional Information
lubricated for life
