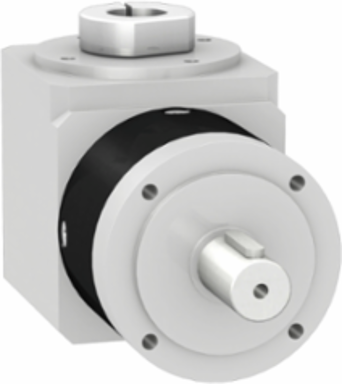

Schneider Electric GBY120040K Angular Planetary Gearbox 120mm, 40:1 Reduction, 230Nm Torque
- MPN: GBY120040K
- PPN: SCH-GBY120040K
CAD
$2484.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 32 range, an offer of angular planetary gearboxes. This angular planetary gearbox has straight teeth, lubricated for life. The external diameter of gearbox is 120mm. It is a gearbox with a reduction ratio of 40 1, maximum axial force (Fa) of 2100N at 100RPM and continuous output torque of 230Nm at 100RPM at 30°C. It offers service life of about 30,000 hours at 100RPM at 30°C. It is an IP54 rated product. The housing is made of black anodized aluminum. It weighs 14kg. This range is compatible with Lexium 52, Lexium 32, Lexium 32i, Lexium 62 and Lexium 62 ILM servo drives. It can be mounted in any position. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France |
|---|
Physical Attributes
| Housing Color | black |
|---|
Complementary Attributes
| Minimum Operational Altitude | -25.0 m, -25.0 m |
|---|---|
| Maximum Operational Altitude | 90.0 m |
| Maximum Permitted Torque | 128.0 N.m |
| Maximum Revolution Speed | 6500.0 rpm |
| Maximum Axial Force Fa | 2100 N 100 rpm, during 30000 hour at 30°C |
|---|---|
| Maximum Output Torque | 368 N.m 100 rpm 30 °C |
| Maximum Radial Force Fr | 1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C |
| Maximum Torsional Backlash | 13 arc.min |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Minimum Operational Altitude | -25.0 m, -25.0 m |
| Reduction Ratio Per Size | 3:1, 4:1, 5:1, 8:1, 12:1, 20:1, 40:1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.2509985632 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 56 kg CO2 eq., 56.4425287356 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Continuous Stall Torque | 80.0 N.m |
| Efficiency | 95.0 % |
| Gearbox External Diameter | 120 mm |
| Internal Diameter | 24.0 mm |
| Maximum Permitted Torque | 128.0 N.m |
| Mounting Position | any position |
| Noise Level | 75 dB 1 m, no-load |
| Peak Stall Torque | 128.0 N.m |
| Product Or Component Type | angular planetary gearbox |
| Service Life In Hours | 30000 h 100 rpm 30 °C |
| Shaft Moment Of Inertia | 2.708 kg.cm² |
| Static Torque | 1.35 N.m |
| Torsional Rigidity | 13 N.m/arcmin |
| Housing Color | black |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Length Total | 221.5 mm |
| Package Weight(Lbs) | 12.118 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 13153.5 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 4201.7 |
| Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6] | 2.8855 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 23144 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 20201 |
| Water Pollution (M3) Operational Energy Use [B6] | 47817.5 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Reduction Ratio | 40, 40:1 |
| Carbon Footprint Of The Distribution Phase [A4] | 1.8063218391, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0354369971, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 159 kg CO2 eq., 1158.8 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Use Carbon Footprint | 1158.8 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Compatibility Code | GBY |
| Device Short Name | GBY |
| Gear Box Type | straight teeth |
| Housing Material | black anodized aluminium |
| Maximum Operational Altitude | 90.0 m |
| Maximum Revolution Speed | 6500.0 rpm |
| No Load Running Torque | 0.3 N.m |
| Nominal Speed | 2050 rpm |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Shaft Material | C 45 |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 218 kg CO2 eq. |
| Pep Code | ENVPEP111245EN |
| Pep Verification Date | 2020-07-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2365.2 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 49875.5 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 1158.8 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 4320.55 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 20201 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 2943 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2943 |
| Customs Code | 8483403040 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Product Compatibility | BMI 70 mm, 2, BMH 70 mm, 2, BSH 70 mm, 2BSH 100 mm, 1, SH3, MH3, ILM |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 1218.3352861351 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-07-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Operation | -25-90 °C, -25-90 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111245EN |
| Ip Degree Of Protection | shaft output IP54 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP111245EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | angular planetary gearbox |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Output Attributes
| Continuous Output Torque | 230 N.m 100 rpm 30 °C |
|---|
| Maximum Output Torque | 368 N.m 100 rpm 30 °C |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Efficiency | 95.0 % |
|---|
Batteries & Runtime Attributes
| Additional Information | lubricated for life |
|---|
