Hubbell ATS-03100 ATS-03100 (former catalog number ATS-OO-5in1-2832-5SP-18)
- MPN: ATS-03100
- UPC: 662620439655
- PPN: HBL-ATS-03100
CAD
$740.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

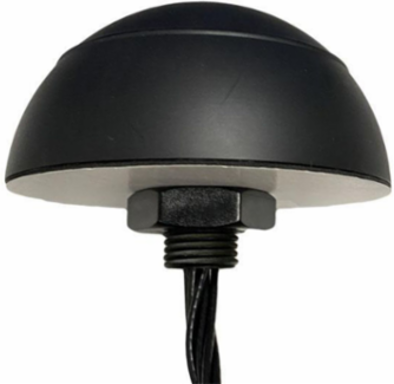

ATS-03100 (former catalog number ATS-OO-5in1-2832-5SP-18). The AccelTex Solutions 5-in-1 GPS/LTE/5G antenna is a perfect compliment to any multi-band radio. This small form factor antenna comes with an integrated threaded bolt mount and is suitable for a broad range of outdoor applications.
Features
- 5-in-1 GPS/LTE/5G antenna with integrated threaded bolt mount
- Designed for multi-band radios in outdoor environments
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-100 |
| Length | 5.1 in |
| Application | Outdoor Cellular |
| Frequency Rating | 698-960/1575.42-1610/1710-2690/3300-4200 MHz |
| Installation Type | Threaded Bolt with Nut |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | LTE |
| BOX SIZE | (in) |
| Antenna Gain | GPS: 25 dBi / LTE: 3 dBi / WiFi: 2 dBi |
|---|---|
| Height | 2.6 in |
| Voltage Ratio | ≤ 2.0-3.0 |
| Connector Type | 5 SMA (1 GPS & 4 LTE) |
| Impedance | 50 Ohms |
| Operating Temperature | -40 to 85 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620439655 |
