Hubbell ATS-01042 ATS-01042 (former catalog number ATS-OO-245-46-1DART-36)

MPN: ATS-01042
UPC: 662620435602
PPN: HBL-ATS-01042

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1343.94/ EA

Qty:

Loading add to cart quantity...

Description

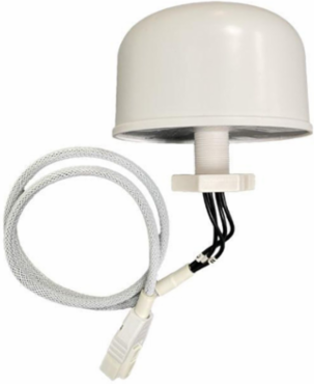

ATS-01042 (former catalog number ATS-OO-245-46-1DART-36). AccelTex Solutions High Gain 4 Element Dual Band Wi-Fi Indoor/Outdoor Omni Antenna with DART connector is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space.

Features

High gain, 4-element band omnidirectional antenna with DART connector
Designed for indoor and outdoor Wi-Fi coverage

Specifications

Country of Origin: China

Cable Type: RG58

Length: 4.7 in

Protection Type: DC Grounded

Width: 2.8 in

Application: Carpeted Space, Indoor Wi-Fi, Outdoor Wi-Fi

Frequency Rating: 2.4-2.5/4.9-5.85 GHz

Installation Type: Threaded Bolt with Nut and Wall/Pole Mount (included)

Operating Temperature: -40 to 65 °C

Freight Class Code: 15730000

Image Actual Or Representative: A

Indoor/Outdoor: Indoor or Outdoor

Base Unit of Measure: EA

Antenna Gain4/6 dBi

Diameter - Pole2 in

Product TypeOmni Antenna

Voltage Ratio< 2.0:1

Windage130 mph (210 km/h)

CompatibilityCisco Catalyst 9120AXE

Impedance50 Ohms

Isolation Loss˃20dB

Class CodeA62

Harmonization Code8517710000

Sub Class CodeA62A620

Technology802.11ac, 802.11n

Carton - SCC-14 Next Lower Level Sub Pack00662620435602
