Hubbell ATS-01050 ATS-01050 (former catalog number ATS-OO-245-46-6NP-36)
- MPN: ATS-01050
- UPC: 662620435640
- PPN: HBL-ATS-01050
CAD
$1009.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

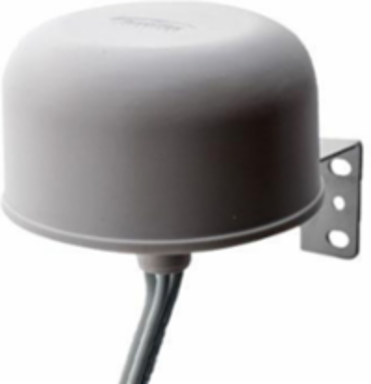

ATS-01050 (former catalog number ATS-OO-245-46-6NP-36). The AccelTex Solutions dual band indoor/outdoor omnidirectional antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.
Features
- Dual band omnidirectional antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes flush mount and wall/pole mount kit for indoor or outdoor use
Specifications
Key Specifications
- Country of Origin
- China

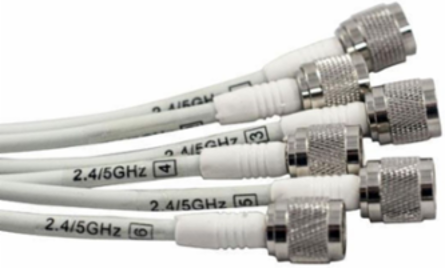

- Cable Type
- RG58
- Length
- 6.1 in
- Protection Type
- DC Grounded
- Width
- 2.8 in
- Application
- Indoor Wi-Fi, Outdoor Wi-Fi
- Frequency Rating
- 2.4-2.5/4.9-5.85 GHz
- Installation Type
- Threaded Bolt with Nut and Wall/Pole Mount (included)
- Operating Temperature
- -40 to 65 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620435640
Antenna Gain4/6 dBi
Diameter - Pole2 in
Product TypeOmni Antenna
Voltage Ratio< 2.0:1
Windage130 mph (210 km/h)
CompatibilityArista O-235E;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Mist AP63E
Impedance50 Ohms
Isolation Loss˃20dB
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
BOX SIZE(in)
