Hubbell ATS-01159 ATS-01159 (former catalog number ATS-OP-LTE-11-1NP-12)

MPN: ATS-01159
UPC: 662620436364
PPN: HBL-ATS-01159

$288.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

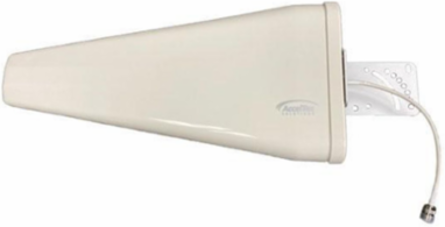

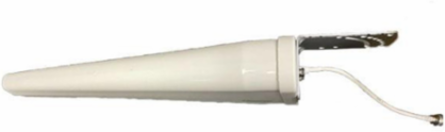

ATS-01159 (former catalog number ATS-OP-LTE-11-1NP-12). The AccelTex Solutions LTE indoor/outdoor log Periodic antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. This antenna comes with integrated mounting holes on the back of the radome and leads exiting the bottom of the antenna. This is a tight beamwidth LTE antenna most commonly used for making bridges.

Features

Tight beamwidth LTE antenna for directional coverage and bridging

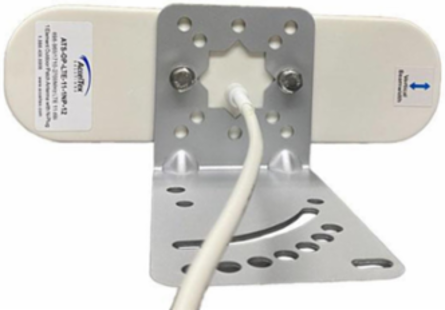

Features integrated mounting holes and leads for easy installation

Specifications

Key Specifications

Country of Origin	China
Diameter - Pole	1.57 in - 2 in
Height	2.6 in
Protection Type	DC Ground
Width	8.3 in
Application	Outdoor Wi-Fi
Connector Type	N Plug
Impedance	50 Ohms
Operating Temperature	-40 to 70 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620436364

Antenna Gain	11 dBi
Dimensions	17.4 in x 8.3 in x 2.6 in
Length	17.4 in
Voltage Ratio	5
Windage	60 m/s
Compatibility	Arista O-235E;Aruba/HP AP-574;Cisco 1572eac;Cisco 1572ec;Cisco IW9167E;Cisco Catalyst 9124AXE;Cisco MR66;Cisco MR72;Cisco MR74;Mist AP61E;Mist AP63E
Frequency Rating	698-960 / 1710-2700 MHz
Installation Type	Pole
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	LTE
BOX SIZE	(in)
