Hubbell ATS-01085 ATS-01085 (former catalog number ATS-OP-245-13-1DART-36)
- MPN: ATS-01085
- UPC: 662620435831
- PPN: HBL-ATS-01085
CAD
$1599.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

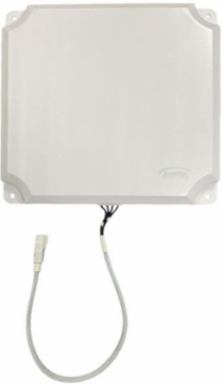

ATS-01085 (former catalog number ATS-OP-245-13-1DART-36). AccelTex Solutions 4 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with DART connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
Documentation & Downloads
Specifications
Key Specifications
| Antenna Gain | 13 dBi |
|---|---|
| Country of Origin | CN |
| Height | 1.4 in |
| Product Type | Patch Antenna |
| Width | 13.8 in |
| Compatibility | Cisco Catalyst 9120AXE |
| Frequency Rating | 2.4-2.485/5.15-5.85 GHz |
| Installation Type | Flush Mount to Wall or Articulating Wall/Pole Mount |
| Operating Temperature | -40 to 70 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Cable Type | RG402 Plen |
|---|---|
| Dimensions | 13.8 in x 13.8 in x 1.4 in |
| Length | 13.8 in |
| Voltage Ratio | < 1.5:1, Max 2.0 |
| Windage | 134 mph (216 km/h) |
| Connector Type | DART |
| Impedance | 50 Ohms |
| Isolation Loss | ˃30 dB |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620435831 |
