Hubbell ATS-01102 ATS-01102 (former catalog number ATS-OP-245-47-6NP-36)
- MPN: ATS-01102
- UPC: 662620435954
- PPN: HBL-ATS-01102
CAD
$576.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

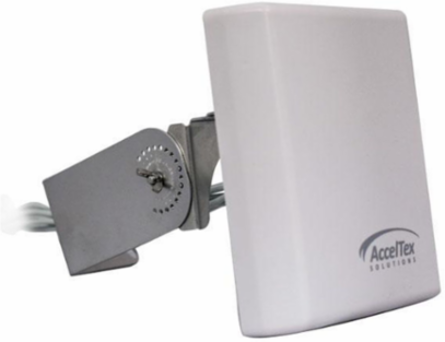

ATS-01102 (former catalog number ATS-OP-245-47-6NP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes flush mount and wall/pole mount kit for versatile installations
Specifications
Key Specifications
| Country of Origin | China |
|---|---|

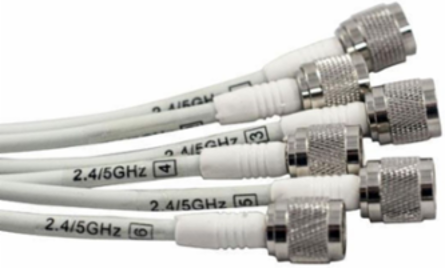

| Cable Type | RG58 |
| Dimensions | 8.1 in x 7 in x 1.8 in |
| Length | 8.1 in |
| Protection Type | DC Grounded |
| Width | 7 in |
| Application | Indoor Wi-Fi, Outdoor Wi-Fi |
| Connector Type | N-Style Plug |
| Impedance | 50 Ohms |
| Isolation Loss | ˃20dB |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | (in) |
| Antenna Gain | 4/7 dBi |
|---|---|
| Diameter - Pole | 2 in |
| Height | 1.8 in |
| Product Type | Patch Antenna |
| Voltage Ratio | < 2.0:1 |
| Windage | 130 mph (210 km/h) |
| Compatibility | Arista O-235E;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Mist AP63E |
| Frequency Rating | 2.4-2.5/4.9-5.85 GHz |
| Installation Type | Threaded Bolt with Nut and Articulating Wall/Pole Mount (included) |
| Operating Temperature | -40 to 65 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620435954 |
