Hubbell ATS-03282 ATS-03282 (former catalog number ATS-OP-2456-7-6NP-36)
- MPN: ATS-03282
- UPC: 662620440392
- PPN: HBL-ATS-03282
CAD
$1987.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

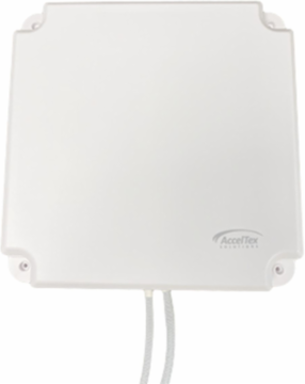

ATS-03282 (former catalog number ATS-OP-2456-7-6NP-36). The AccelTex Solutions Tri-Band, 6-Element, patch antenna with N-Style Plug connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation in the 2.5 GHz, 5 GHz and 6 GHz bands. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Available in black upon request. **Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See Section III of Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
Features
- Aesthetically Pleasing
- Ships with integrated flush mount
- Ships with wall and pole mount kit
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-200 |
| Dimensions | 15.35 in x 15.35 in x 2.16 in |
| Length | 15.35 in |
| Width | 15.35 in |
| Compatibility | Arista O-235E;Arista O-435E;Aruba/HP AP-274;Aruba/HP AP-374;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Engenius EWS860AP;Fortinet FAP-432F;Mist AP63E |
| Frequency Rating | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Technology | 802.11ax |
| BOX SIZE | (in) |
| Antenna Gain | 6/6/6 dBi |
|---|---|
| Description - Slang | Tri-Band, 6 Element, 7 dBi Patch Antenna with N-Style Plugs |
| Height | 2.16 in |
| Product Type | Patch Antenna |
| Application | Indoor Wi-Fi;Outdoor Wi-Fi |
| Connector Type | N-Style Plug |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620440392 |
