Hubbell ATS-03675 ATS-03675 (former catalog number ATS-OP-2456-81010-4NP-36)

MPN: ATS-03675
UPC: 662620442266
PPN: HBL-ATS-03675

$1383.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

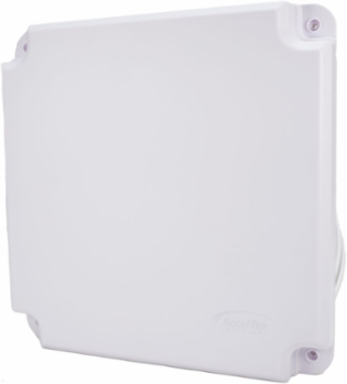

The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with 4 N-Style connectors is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see Section III of the FCC OET Labs 6 GHz guidance.)

Features

Optimized for 2.4, 5, and 6 GHz Wi-Fi operation
Provides directional RF coverage for indoor and outdoor use
Features 4 N-Style connectors for enterprise-class AP compatibility

Specifications

Key Specifications

Country of Origin	China
Cable Type	ATS-195
Dimensions Metric	300 mm x 300 mm x 47 mm
HeightMetric	47 mm
Length Metric	300 mm
Width	11.81 in
Application	Indoor Wi-Fi;Outdoor Wi-Fi
Connector Type	N-Style Plug
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620442266

Antenna Gain	8/10/10 dBi
Dimensions	11.81 in x 11.81 in x 1.85 in
Height	1.85 in
Length	11.81 in
Product Type	Patch Antenna
WidthMetric	300 mm
Compatibility	Aruba/HP AP-584;Cisco 1562e;Cisco 1562ps;Cisco 1572eac;Cisco 1572ec;Cisco CW9163E;Cisco MR76;Cisco MR86
Frequency Rating	2.4-2.48/5.15-5.85/6-7.125 GHz
Freight Class Code	15730000
Image Actual Or Representative	A
Technology	802.11ax
BOX SIZE	(in)
