Hubbell ATS-00854 ATS-00854 (former catalog number ATS-IDSD-245-23-1NP-IC)

MPN: ATS-00854
UPC: 662620435121
PPN: HBL-ATS-00854

$63.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

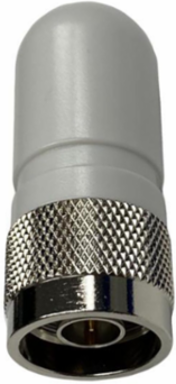

ATS-00854 (former catalog number ATS-IDSD-245-23-1NP-IC). The AccelTex Solutions dual band indoor stubby duck antenna is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor space. The antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz and attaches directly to any enterprise-class AP. This highly versatile antenna is suitable for a broad range of indoor applications where a higher gain external antenna is not needed.

Documentation & Downloads

Specifications

Key Specifications

Antenna Gain	2/3 dBi
Length	1.93 in
Voltage Ratio	≤2.0
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	N-Style Plug
Installation Type	Direct Connect to Radio
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor
Base Unit of Measure	EA

Country of Origin	TW
Product Type	Omni Antenna
Width	0.8 in
Compatibility	Adtran/Bluesocket 1940;Arista O-105E;Arista O-235E;Aruba/HP AP-274;Aruba/HP AP-374;Aruba/HP AP-574;Aruba/HP AP-584;Cisco 1572eac;Cisco 1572ec;Cisco Meraki MR66;Cisco Meraki MR72;Cisco Meraki MR74;Cisco Meraki MR84;Extreme AP360E;Extreme AP460e;Mist AP61E;Mist AP63E
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
Carton - SCC-14 Next Lower Level Sub Pack	00662620435121
