Hubbell ATS-00855 ATS-00855 (former catalog number ATS-IDSD-245-23-1RPSP-IC)

MPN: ATS-00855
UPC: 662620435138
PPN: HBL-ATS-00855

$67.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

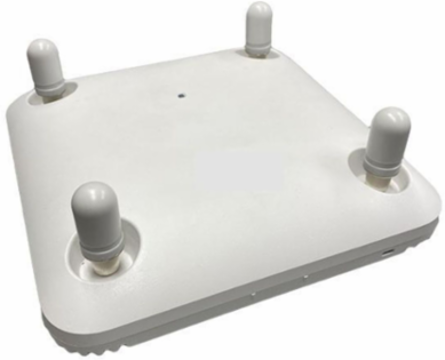

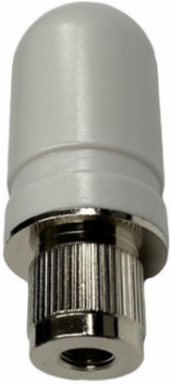

ATS-00855 (former catalog number ATS-IDSD-245-23-1RPSP-IC). The AccelTex Solutions dual band indoor stubby duck antenna is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor space. The antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz and attaches directly to any enterprise-class AP. This highly versatile antenna is suitable for a broad range of indoor applications where a higher gain external antenna is not needed.

Features

Dual band stubby duck antenna optimized for 2.4 and 5 GHz Wi-Fi
Compact design attaches directly to enterprise-class APs.

Specifications

Key Specifications

Country of Origin	Taiwan
Length	1.9 in
Voltage Ratio	≤2.0
Application	Indoor Wi-Fi
Connector Type	RPSMA Plug
Impedance	50 Ohms
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	2/3.5 dBi
Product Type	Omni Antenna
Width	0.8 in
Compatibility	Arista C-230E;Aruba/HP AP-504;Aruba/HP AP-514;Aruba/HP AP-534;Aruba/HP AP-518;Aruba/HP AP-634;Aruba/HP AP-654;Aruba/HP AP-734;Mist AP32e;Mist AP43e
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Installation Type	Direct Connect to Radio
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620435138
