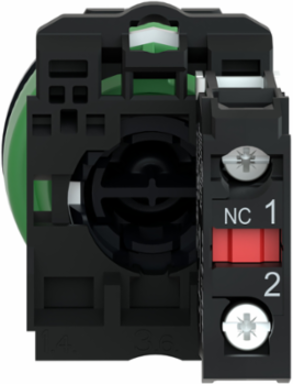

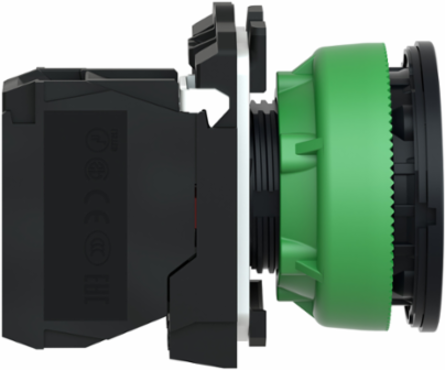

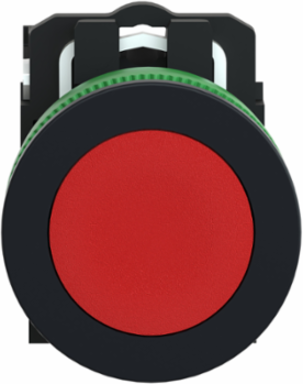

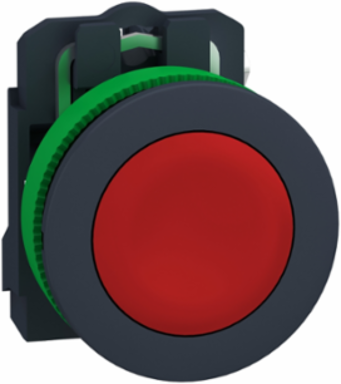

Schneider Electric XB5FA42 Push button flush mounted, Harmony XB5, plastic, red, 30mm, spring return, unmarked, 1NC
- MPN: XB5FA42
- PPN: SCH-XB5FA42
- UNSPSC: 39122216
CAD
$43.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- Allows a clearer view of control features.
- Innovative design without compromise on cost.
- Delivers extremely robust performance even in severe environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Depth | 55 mm |
| Weight | 43 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | dark grey plastic, plastic, dark grey plastic |
| Electrical Durability | 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6 |
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The Distribution Phase A4 | 0.015179530504088377, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.011461618112188572, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.002395126760563381 |
| Local Publishable Date | 2026-08-10 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 13 % |
| Compatibility Code | XB5 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Fixing Collar Material | plastic |
| Head Type | built-in-flush |
| Mounting Diameter | 30.5 mm |
| Operating Travel | 1.5 mm NC changing electrical state)4.3 mm total travel) |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Contacts Composition | 1 NC |
| Database Version | 2022-01 |
| Height Nominal | 42 mm |
| Cap/Operator Or Lens Colour | red |
| Customs Code | 8536509031 |
| Short Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 1, no |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Operator Profile 1 Cap Operator Or Lens Color | red |
| Terminals Description Iso N°1 | (21-22)NC, (21-22)NC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.07857521633272489 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.3221968442941451 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2303008EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 14 % |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NC |
| Device Short Name | XB5F |
| Gcr Bridge | XB5FACUST01 |
| Mechanical Durability | 10000000 cycles |
| Operating Force | 3.5 N NC changing electrical state |
| Operator Profile | red flush, unmarked |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | push-button |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | spring return |
| Connections Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Operator Profile 1 Marking | unmarked |
| Data Source | extrapolated product |
| Width Nominal | 36.6 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Product Repair Index Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Functional Unit Description | XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
