Schneider Electric XB7NA65 Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC

  • MPN: XB7NA65
  • PPN: SCH-XB7NA65
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $41.55

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB7, monolithic blue push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Indonesia

    Physical Attributes

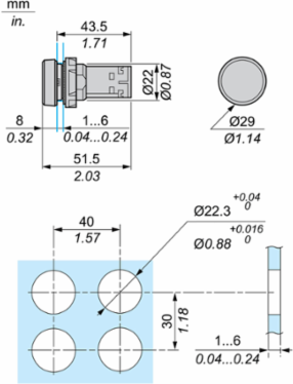

    Cad Overall Depth51.5 mm
    Cad Overall Width29 mm
    Cad Overall Height29 mm

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Durability1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Headcross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Terminals Description Iso N°1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0528840656
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1530121758
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Operationslow-break
    Device Short NameXB7
    Fixing Modefixing nut beneath head 2-2.4 N.m
    Mounting Diameter22 mm
    Overvoltage Categoryclass II conforming to IEC 61140
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protective TreatmentTH
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Software Versionv5.9.4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Type Of Operatorspring return
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB7, monolithic push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %11
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    Cap/Operator Or Lens Colourblue
    Short-circuit Protection4 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)20 g
    Warranty (In Months)18
    Customs Code8536509031
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
    Certificate AgencyCCC, GOST
    Carbon Footprint Of The Distribution Phase [A4]0.002615352, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0001065961, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0049783662
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312031EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeXB7
    Contacts Type And Composition1 NO + 1 NC
    Electrical Reliabilityλ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
    Mechanical Durability1000000 cycles
    Operator Profileblue flush, unmarked
    Positive Openingwith NC contact IEC 60947-5-1 appendix K
    Product Or Component Typepush-button
    Range Of ProductHarmony XB7
    Sale Per Indivisible Quantity10
    Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-2730 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2312031EN
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-10.3 A 240 V, AC-14, D300 IEC 60947-5-10.6 A 120 V, AC-14, D300 IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Manufacturing [A1-a3]0.0008

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
    Nema Degree Of ProtectionUL type 3/12NEMA 12 UL 50 E, NEMA 3 UL 50 E
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.2135965557
    Environmental DisclosureENVPEP2312031EN
    Ip Degree Of ProtectionIP20 IEC 60529 rear face)IP65 IEC 60529 front face)
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2312031EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2312031EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typepush-button
    Range Of ProductHarmony XB7

    ETIM

    ETIM 8EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationmonolithic product

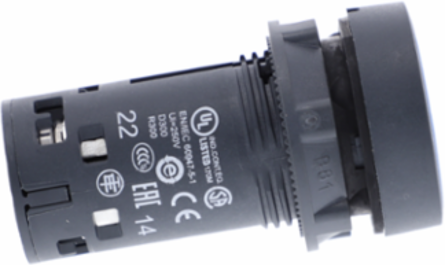

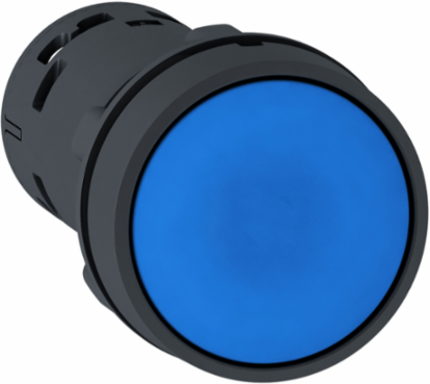

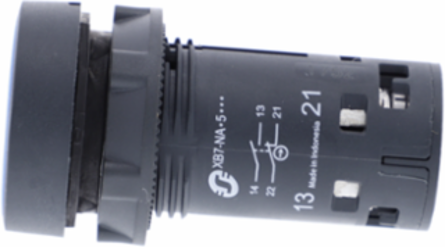

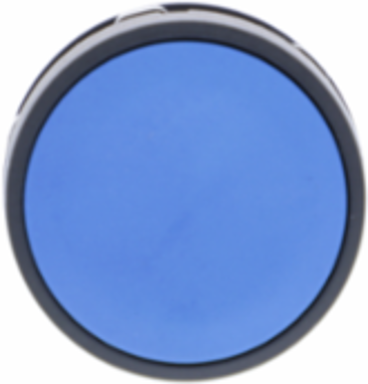

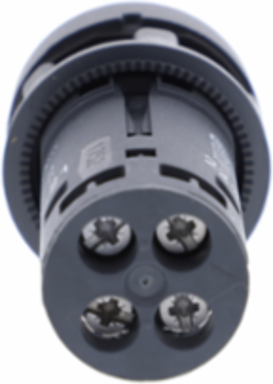

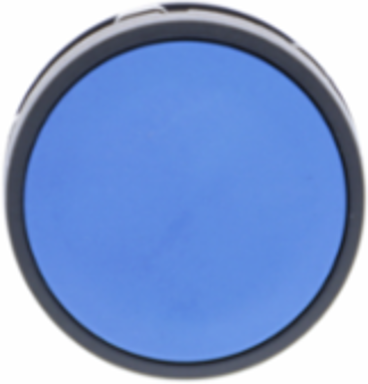

    Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC
    Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC
    Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC
    Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC
    Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC
    Harmony XB7 Monolithic Push Button 22mm Blue Spring Return 1NO+1NC
