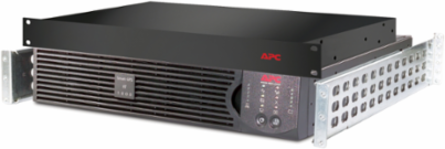

APC SURT023M 3000VA Marine Rack Mount Uninterruptible Power Supply, 1U, 208-240V, 11.22 lb

MPN: SURT023M
UPC: 731304284697
PPN: APC-SURT023M

$759.70

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The APC Filter for Marine application provides high availability and ruggedized power protection for shipboard and other transportation applications. It supports input voltage range of 208V to 240V, and output voltage range of 200V to 240V. The filter has a load capacity of 3000 VA and includes one IEC 60320 C19 power socket outlet. It operates at a frequency range of 47-63 Hz and has a maximum line current of 16 A. The unit is 1U in height.

Features

1U rackmountable. Hardware included.
For installations where hard wiring is required or preferred
Provides ruggedized power protection for shipboard and transportation applications
Supports input voltages of 208V, 220V, 230V, and 240
Offers a load capacity of 3000 VA
1U height makes it suitable for space-constrained environments

Documentation & Downloads

Specifications

Additional

Input Voltage	208 V, 220 V, 230 V, 240 V
Capacity	3000 VA
Height	1.73 in (44 mm)
Depth	10.98 in (279 mm)
Number of Rack Units	1U
Operating Temperature	32 to 131 F (0 to 55 C)
Relative Humidity	0-95 %
Storage Altitude	0 to 50,000 ft
Approvals	DNV

Output Voltage	200 V, 208 V, 220 V, 230 V, 240 V
Input Connection Type	IEC 60320 C20
Width	17.01 in (432 mm)
Weight	11.22 lb (5.09 kg)
Mounting Location	front
Storage Temperature	-13 to 167 F (-25 to 75 C)
Operating Altitude	0 to 10,000 ft
Protection Type	Without circuit breaker
RoHS	Compliant with exemptions
