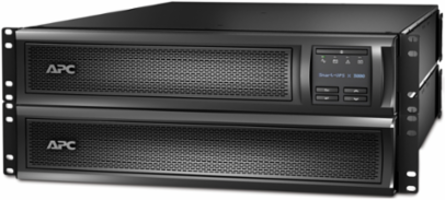

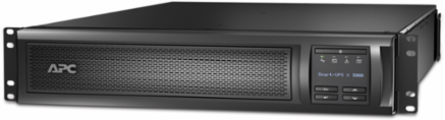

APC SMX3000RMHV2U Smart-UPS X 3000VA Line Interactive 2U Rack/Tower 208V-230V 8x C13+1x C19

MPN: SMX3000RMHV2U
UPC: 731304268529
PPN: APC-SMX3000RMHV2U

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

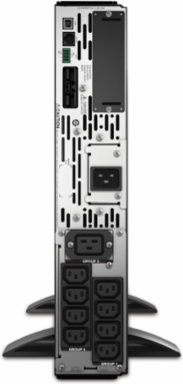

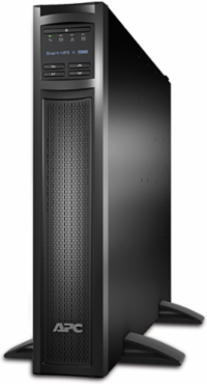

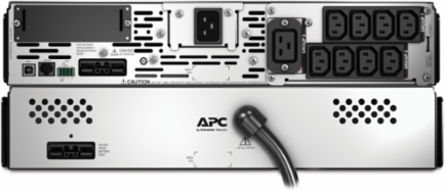

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Features

3kVA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
User-selectable high voltage setting of 200V-240V
Add up to 10 external battery packs (SMX120RMBP2U)
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Ideal for servers, storage, networking & commercial applications

Documentation & Downloads

Specifications

Additional

Output Power Capacity	3000 VA, 2700 W
Nominal Output Voltage	230 V
Waveform Type	Sine wave
Surge Energy Rating	645 J
Typical Recharge Time	3 h
Input Connection Type	IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
Dimensions (H x W x D)	3.35 in x 17.01 in x 26.26 in (85 mm x 432 mm x 667 mm)
Rack Height	2U
Color	Black
Operating Temperature Range	32 to 104 F (0 to 40 C)
Operating Altitude	0 to 10000 ft
Relative Humidity	0 to 95%
Communication Port Type	SmartSlot
USB Compatible	Yes
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Replacement Battery	APCRBC117

Input Voltage	208 V, 220 V, 230 V, 240 V
Topology	Line Interactive
Rated Transfer Time	2-4 ms
Battery Type	Lead-Acid
Battery Life	3-5 years
Output Connection Type	8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
Weight	82.28 lb (37.32 kg)
Mount Position	front
Country of Origin	Philippines
Storage Temperature Range	5 to 113 F (-15 to 45 C)
Storage Altitude	0 to 50000 ft (0 to 15240 m)
Storage Relative Humidity	0 to 95%
Emergency Power Off (EPO)	Yes
Product Certifications	CE, CSA, EAC, IRAM, RCM, VDE, UK PSTI
RoHS	Compliant with Exemptions
Warranty	3 years repair or replace (excluding battery), 2 years battery
