APC SMX3000RMHV2UNC Smart-UPS X 3000VA Line Interactive UPS, 2U Rack/Tower, 208V-230V, 8 C13+1 C19

MPN: SMX3000RMHV2UNC
UPC: 731304272694
PPN: APC-SMX3000RMHV2UNC

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Features

3kVA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
User-selectable high voltage setting of 200V-240V
Add up to 10 external battery packs (SMX120RMBP2U)
Preinstalled NMC for network-based UPS monitoring & management
1-Year Secure Network Management Card subscription included
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Ideal for servers, storage, networking & commercial applications
Graceful shutdown of physical servers, virtual machines and HCI clusters

Documentation & Downloads

Specifications

Additional

Power Capacity	3000 VA
Voltage Input	208 V, 230 V
Phase	Single-phase
Topology	Line Interactive
Typical Recharge Time	3 h
Transfer Time	2-4 ms (6 ms typical, 10 ms max)
Efficiency at Full Load	140-280 V
Storage Temperature Range	-15-45 C (5-113 F)
Storage Altitude	0-50,000 ft (0-15,240 m)
Storage Relative Humidity	0-95%
Height	3.35 in (85 mm)
Depth	26.26 in (667 mm)

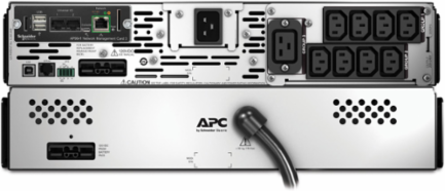

Output Connections	8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
Cord Length	8 ft (2.44 m)
Product Orientation	lower
Replacement Battery	APCRBC117
Battery Charge Power	245 W
Country of Origin	Philippines
RoHS Compliance	Compliant with Exemptions
Mercury Free	Yes

Power Output	2700 W
Voltage Output	230 V nominal
Waveform Type	Sine wave
Surge Energy Rating	645 J
Harmonic Distortion	Less than 5%
Input Frequency	50/60 Hz 3 Hz
Operating Temperature Range	0-40 C (32-104 F)
Operating Altitude	0-10,000 ft
Relative Humidity	0-95%
Rack Units	2U
Width	17.01 in (432 mm)
Net Weight	82.28 lb (37.32 kg)
Input Connection Type	BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Mount Position	front
Battery Type	Lead-Acid battery
Battery Life	3-5 years
Color	Black
Approvals	C-tick, CE, EAC, GOST, IRAM, VDE, UK PSTI
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
