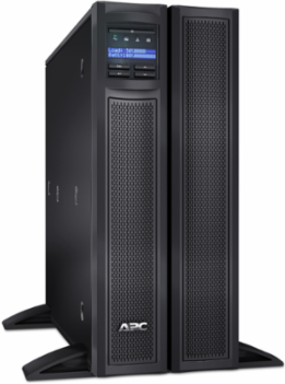

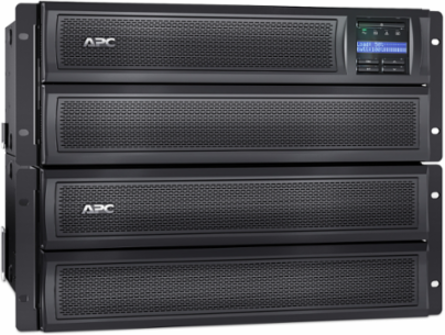

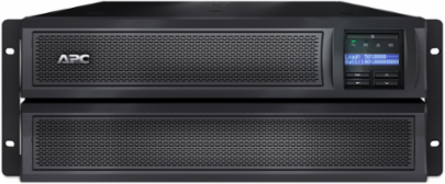

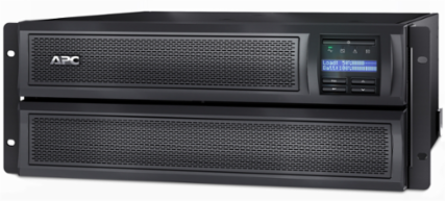

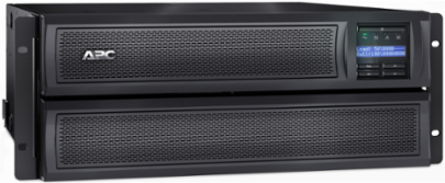

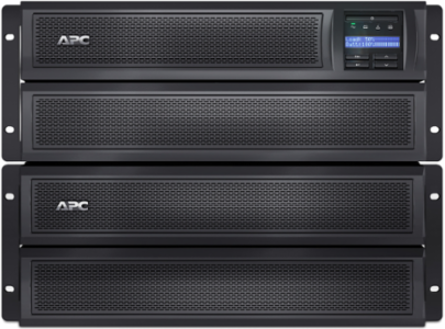

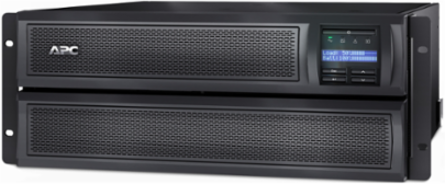

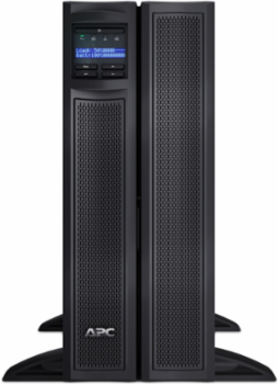

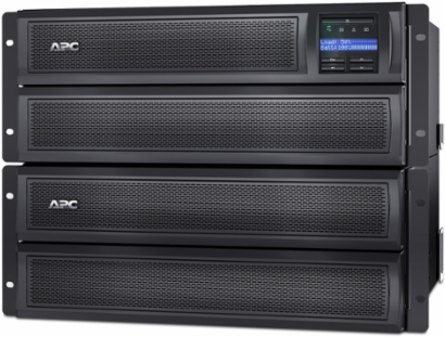

APC SMX3000HVNC Smart-UPS X 3000VA Line Interactive Uninterruptible Power Supply, 4U Rack, 208V-230V, 8x C13, 2x C19
- MPN: SMX3000HVNC
- UPC: 731304292623
- PPN: APC-SMX3000HVNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS X 3000VA Line Interactive Uninterruptible Power Supply, 4U Rack, 208V-230V, 8x C13, 2x C19
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 3000 VA
- Input Voltage
- 208 V, 220 V, 230 V, 240 V
- Transfer Time
- 6 ms typical, 10 ms maximum
- Waveform Type
- Sine wave
- Input Frequency
- 50/60 Hz 3 Hz auto-sensing

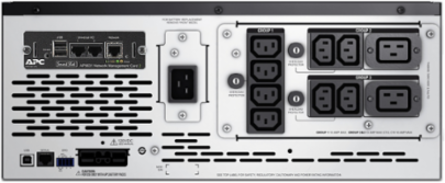

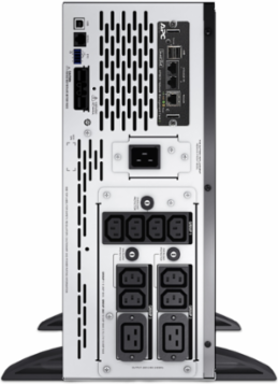

- Output Connections
- 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
- Dimensions (HxWxD)
- 17.01 in x 7.01 in x 19.02 in (432 mm x 178 mm x 483 mm)
- Cord Length
- 8 ft (2.44 m)
- Product Orientation
- lower
- Typical Recharge Time
- 3 h
- Battery Life Expectancy
- 3-5 years
- Acoustic Level
- 55 dBA
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Operating Altitude
- 0 to 10,000 ft
- Relative Humidity
- 0 to 95%
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- WEEE
- Complies with EU waste collection requirements
- Mercury Free
- Yes
- Color
- Black
Power Output2700 W
Output Voltage230 V
TopologyLine Interactive
Surge Energy Rating645 J
Rack Units4U
Input Connection TypeBS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Net Weight85.19 lb (38.64 kg)
Mount Positionfront
Battery TypeLead-Acid
Replacement BatteryAPCRBC143
Battery Charge Power245 W rated
Heat Dissipation184 Btu/h
Storage Temperature Range5 to 113 F (-15 to 45 C)
Storage Altitude0 to 50,000 ft (0 to 15,240 m)
ApprovalsC-tick, CE, CSA, EAC, GOST, IRAM, VDE, UK PSTI
RoHSCompliant with Exemptions
REACHContains SVHC above threshold
California Prop 65Prop 65 Compliant
Country of OriginPhilippines
