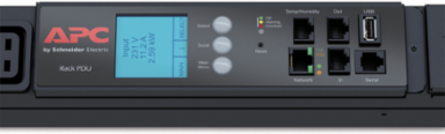

APC AP8888 Rack PDU 2G Metered 23.0kW 240V ZeroU (30) C13 & (12) C19 6 ft Cord Length
- MPN: AP8888
- UPC: 731304289944
- PPN: APC-AP8888
CAD
$4552.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Features
- Ideal for colocation, large or remote data center operators
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Stay on top of potential circuit overloads with user-defined alarms
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Zero U toolless installation
Documentation & Downloads
Specifications
Additional
| Input Voltage | 400 V 3 phase |
|---|---|
| Input Current Limit | 40 A |
| Power Capacity | 23.0 kW |
| Height | 72.01 in (182.9 cm) |
| Depth | 2.01 in (5.1 cm) |
| Cord Length | 6 ft (1.83 m) |
| Mount Position | side |
| Outlets | 30 C13, 12 C19 |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Storage Humidity Range | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Standards | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003 |
| Mercury Free | Yes |
| REACH SVHC Free | Yes |
| Nominal Output Voltage | 240 V |
|---|---|
| Line Rated Current | 32 A |
| Input Frequency | 50/60 Hz |
| Width | 2.20 in (5.6 cm) |
| Weight | 22.3 lb (10.1 kg) |

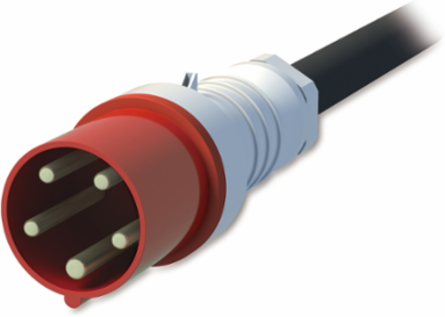

| Input Connection Type | IEC 60309 60A 3P+N+E |
| Number of Cables | 1 |
| Operating Temperature Range | 23 to 140 F (-5 to 60 C) |
| Operating Humidity Range | 5 to 95 % |
| Operating Altitude | 0 to 10000 ft |
| Approvals | UL Listed, cUL Listed, VCCI Class A |
| RoHS | Compliant with Exemptions |
| Lead Free | Yes |
| Country of Origin | India |
