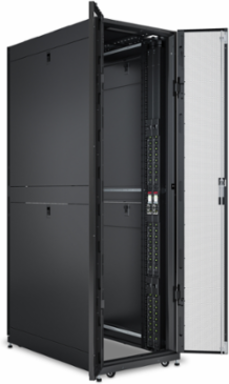

APC APDU9967 Rack PDU, 9000 Switched, 0U, 17.3kW, 208V, 42 C13/C15 & 6 C19/C21 Sockets
- MPN: APDU9967
- UPC: 731304356349
- PPN: APC-APDU9967
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It features 42 C13 and C15 outlets and 6 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. This PDU is designed for ZeroU mounting and supports a maximum line current of 48A.

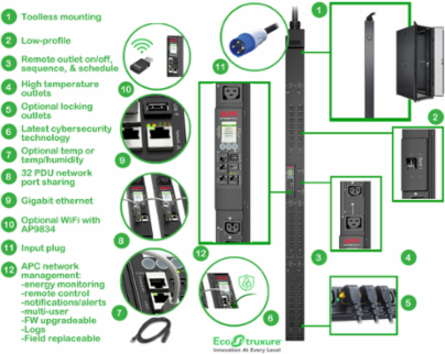

Features
- It can handle a maximum power capacity of 17.3kW, ideal for high-power applications
- It includes 42 IEC C13 and C15 outlets and 6 IEC C19 and C21 outlets, offering extensive connectivity

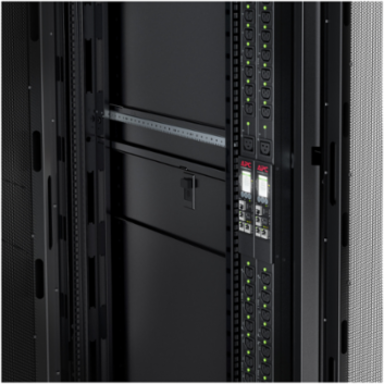

- The ZeroU mounting design helps save rack space and improves cable management

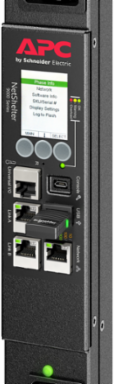

- Allows for remote monitoring and control, enhancing power management capabilities
Documentation & Downloads
Specifications
Additional
| Input Voltage | 208 V 3 phase |
|---|---|
| Max Line Current | 48 A |
| Height | 72.17 in (183.3 cm) |
| Depth | 2.99 in (7.6 cm) |
| Rack Height | 0U |

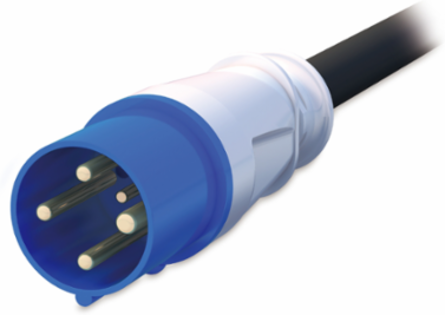

| Input Connection Type | IEC 60309 60A 3P+PE |
| RoHS | Compliant with Exemptions |
| Reach | Contains Substances of Very High Concern |
| Nominal Output Voltage | 208 V |
|---|---|
| Power Capacity | 17.3 kW |
| Width | 4.37 in (11.1 cm) |
| Weight | 32.06 lb (14.54 kg) |
| Cord Length | 6 ft (1.83 m) |
| Mount Position | Side, Vertical |
| Approvals | cUL Listed, FCC part 15 class A, UL Listed, VCCI Class A |
| Mercury Free | Yes |
